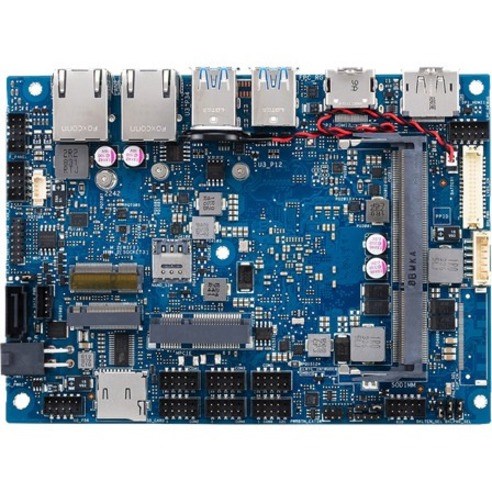

ASUS E393S-IM-AA is a 3.5" SBC industrial motherboard featuring rich I/O capabilities, advanced connectivity and flexible customization options in a smaller board that reduces chassis sizes for space-restrictive installations. Offering up to 6 COM ports(2 x RS-232/422/485) and supports dual display configuration by multiple interface: HDMI/DP and integrated CPU. This product is designed for high performance and silent operation in harsh environment. ASUS E393S-IM-AA is an ideal choice for a wide range of embedded applications.
As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://usa.asus.com
- Brand Name
- Asus
- Product Type
- Single Board Computer Motherboard
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Total Processor Supported
- 1
- Processor Socket
- Socket BGA-1296
- Integrated Processor
- Integrated Processor Type
- Atom
- Integrated Processor Model
- x5-E3930
- Integrated Processor Speed
- 1.30 GHz
- Integrated Processor Cache
- 2 MB
- Integrated Processor Core
- Dual-core (2 Core)
- Memory
- Number of Memory Slots
- 2
- Memory Form Factor
- SoDIMM
- Maximum Memory Supported
- 8 GB
- Memory Technology
- DDR3L SDRAM
- Memory Speed Supported
- 1866 MHz
- 1600 MHz
- 1333 MHz
- I/O Controller
- Controller Type
- Serial ATA/600
- Video
- Onboard Video
- On-board Video Chipset
- Graphics Controller Model
- HD Graphics 505
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Gigabit Ethernet
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 1
- Total Number of PCI Express Slots
- 1
- Interfaces/Ports
- Total Number of USB Ports
- 4
- Number of USB 3.1 Ports
- 4
- HDMI
- Yes
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 2
- Onboard Interfaces
- Number of SATA Interfaces
- 1
- Number of M.2 Interfaces
- 2
- Total Number of Onboard USB Ports
- 2
- Number of Onboard USB 2.0 Ports
- 2
- Physical Characteristics
- Form Factor
- 3.5" SBC
- Width
- 5.7"
- Depth
- 4.1"
- Miscellaneous
- Package Contents
- E393S-IM-AA Single Board Computer Motherboard
- 1 x IO Shield
- 1 x SATA 6G Cable
- 2 x M.2 Screw Pack
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
