- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://usa.asus.com
- Brand Name
- Asus
- Product Type
- Computer Case
ASUS PrimeAP202 ARGB
The ASUS Prime AP202 ARGB is a versatile panoramic mATX chassis designed to showcase system components with style. A curved tempered glass panel extends seamlessly from the front to the side, offering spectacular views of components from almost any angle. A patented slot vent provides optimal cooling for the graphics card, and an integrated ARGB light band works seamlessly with Aura Sync.
Patented slot vent
- provides optimal
- graphics card cooling
Extensive compatibility
- supports graphics cards
- up to 420mm long
Integrated ARGBlight band
- works seamlessly
- with Aura Sync

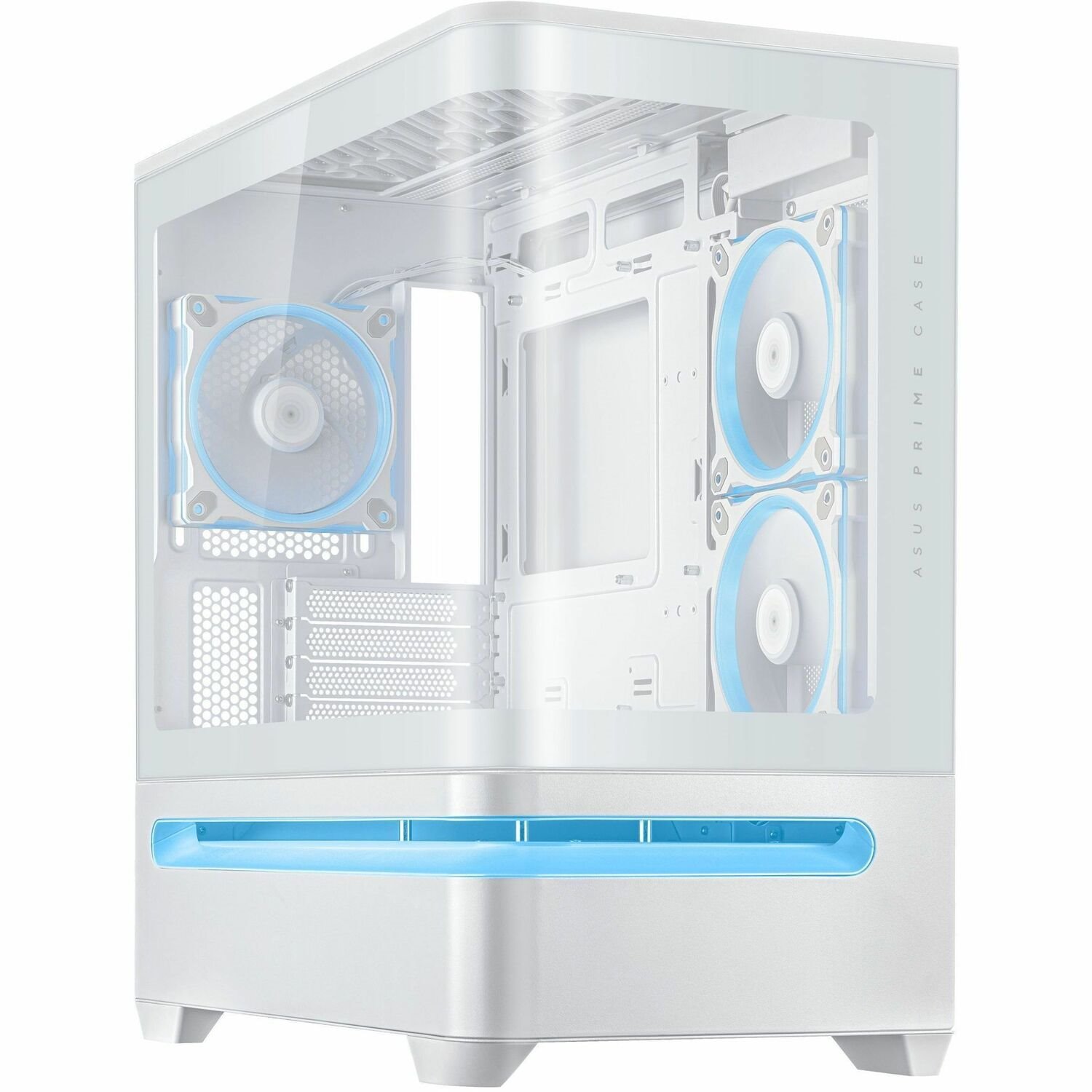

Curved Tempered Glass
See the Difference
Views through the curved tempered glass that stretches across two sides of the case show internal components from multiple angles. This glass undergoes a five-stage process that approaches aerospace standards, including thermal treatment that gives it superior strength and durability. This technique helps ensure reliable protection while elevating the DIY experience, offering users an immersive and refined foundation for their build.
01
- Raw Material Selection
02
- Cutting & Edge Grinding
03
- Tempered & Heat Bending
04
- Quality Inspection
05
- Safety Evaluation
Easy-Detach Rail
The curved glass panel features a easy-detach rail, making removal and reattachment safe and simple.
Unique Design
Patented Slot Vent
An innovative airflow design offers ideal thermal performance, letting air in to cool mission-critical components, especially the graphics card.
Ambient Lighting
An integrated ARGB light band near the bottom of case provides spectacular lighting effects, with Aura Sync adapting seamlessly to unique user scenarios. Customize whatever colors you want to make your PC build shine.
Three Pre-Installed ARGB Fans
Three pre-installed 120mm ARGB fans with extra-thick 28mm frames yield optimal airflow and integrate 20 addressable RGB LEDs with a dual lighting design along the side of the frame, uniquely illuminating your system.
Functionality
High-Speed USB Type-C®
The I/O panel on the top features a USB Type-C®port ready for transfer speeds of up to 20Gbps.
20Gbps Connectivity
Optimized Cable Management
A 30mm compartment behind the motherboard helps keep cables tucked away and tidy.
- Technical Information
- Motherboard Supported
- Micro ATX
- Mini ITX
- Number of Fans Supported
- 9
- Fan Supported Details
Cooling Support (Top):
- 3 x 120 mm
- 2 x 140 mm
Cooling Support (Rear):
- 1 x 120 mm
Pre-installed Fans (Rear):
- 1 x 120 mm ARGB
Pre-Installed Fan (Side):
- 2 x 120 mm ARGB
- Number of Fans Installed
- 3
- Fan Size Supported
- 4.72"
- 5.51"
- Installed Fan Size
- 4.72"
- Installed Fan Size Details
- 3 × 120mm
- Features
- Thermally Optimized
- Curved Side Panel
- ARGB Fan
- Cable Management
- Dust Filter
- Window Panel
- Yes
- Window Panel Location
- Front
- Side Panel
- Bays
- Number of Internal 2.5"/3.5" Bays
- 2
- Number of Total Expansion Bays
- 2
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Interfaces/Ports
- Total Number of USB Ports
- 3
- USB Port Details
- 2 x USB 3.2 Gen 1
- 1 x USB 3.2 Gen 2x2 Type C
- Front USB
- Yes
- Total Number of Audio In Ports
- 1
- Front Audio In
- Yes
- Total Number of Audio Out Ports
- 1
- Front Audio Out
- Yes
- Microphone
- Yes
- Physical Characteristics
- Color Family
- White
- Product Color
- White
- Product Material
- Tempered Glass
- Cooler Type
- Fan Cooler
- Maximum CPU Cooler Height
- 6.89"
- Maximum PSU Length
- 7.87"
- Maximum GPU Length
- 16.54"
- Height
- 17.4"
- Width
- 9.3"
- Depth
- 18.1"
- Weight (Approximate)
- 19.84 lb
