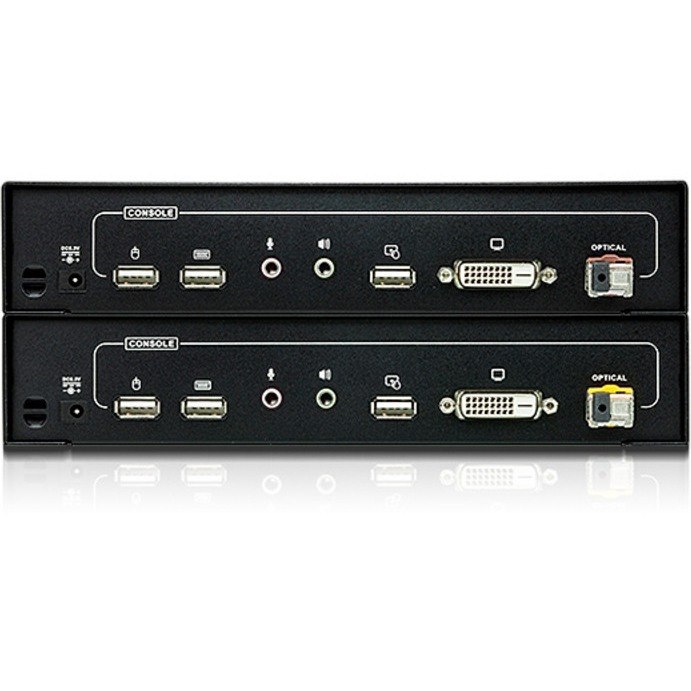

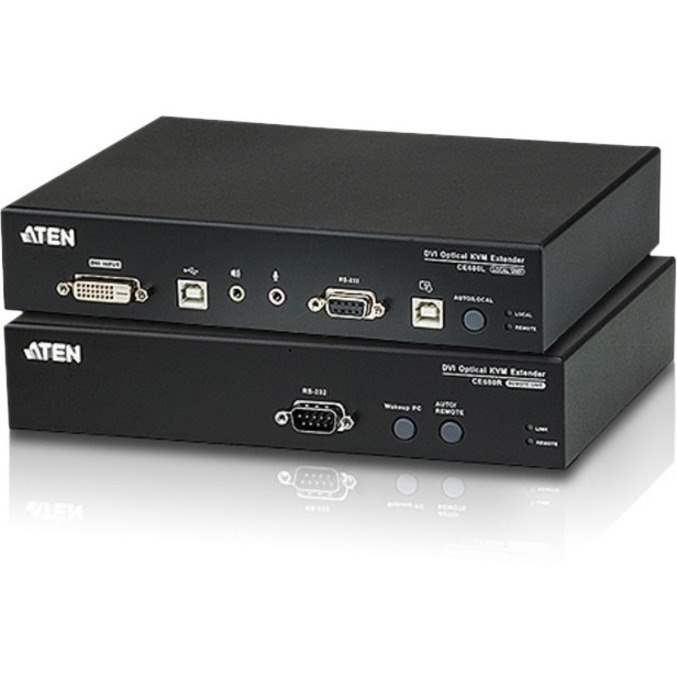

The CE680 is a DVI Optical KVM Extender that overcomes length restrictions of standard DVI cables by using fiber optics to send high definition audio, video and control signals over longer distances. The CE680 can transmit KVM DVI signals very long distances - up to 600 m away from the source. The extender takes audio/video streams from the local source and serializes the data to pass it over a single 3.125 Gbps optical link, for resolutions up to 1920 x 1200 @ 60Hz, 24-bits, with picture perfect quality.
- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com/us/en/
- Brand Name
- ATEN
- Product Type
- KVM Console/Extender
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Computers Supported
- 1
- Number of Local Users Supported
- 1
- Number of Remote Users Supported
- 1
- Maximum Operating Distance
- 1968.50 ft
- Video
- Graphic Mode
- WUXGA
- Maximum Video Resolution
- 1920 x 1200
- Interfaces/Ports
- USB
- Yes
- DVI
- Yes
- Number of USB Ports
- 8
- Number of DVI Ports
- 3
- Power Description
- Input Voltage
- 5.3 V DC
- Physical Characteristics
- Form Factor
- Rack-mountable
- Transmitter Height
- 1.70"
- Transmitter Width
- 6.40"
- Transmitter Depth
- 8.50"
- Receiver Height
- 1.70"
- Receiver Width
- 6.40"
- Receiver Depth
- 8.50"
- Transmitter Weight (Approximate)
- 2.40 lb
- Receiver Weight (Approximate)
- 2.40 lb
- Miscellaneous
- Package Contents
- 1 x CE680L DVI Optical KVM Extender (Local Unit)
- 1 x CE680R DVI Optical KVM Extender (Remote Unit)
- 1 x Custom KVM Cable Set (6 ft., 1.8m)
- 1 x USB Cable (6 ft., 1.8m)
- 2 x Power Adapters
- 1 x Mounting Kit
- 1 x User Instructions
- Environmentally Friendly
- Yes
- Country of Origin
- Taiwan
