Quick Facts
- Modem sharing for six users.
- Includes a DB25 extension cable and a serial AT® adapter.
- Perfect for workgroups that need limited data communications or only connect to the Internet occasionally.
- Inexpensive, nonpowered, easy to use.
- Use with sync or async devices.
Further Details
Use our Modem Splitter to connect six terminals to one modem and save money-you won't need extra modems and extra lines!
No special cables are needed. It uses ordinary straight-pinned cables for hookup, and includes a 6-ft. DB25 male/DB25 female extension cable and a serial DB9 female/DB25 male AT adapter.
The Modem Splitter is transparent to speed and protocol, and works equally well in sync and async environments.
- General Information
- Manufacturer
- Black Box Corporation
- Manufacturer Website Address
- http://www.blackbox.com
- Brand Name
- Black Box
- Product Type
- Signal Splitter
- Warranty
- Limited Warranty
- 1 Year
- Physical Characteristics
- Height
- 7.5"
- Width
- 2.5"
- Depth
- 1.3"
- Weight (Approximate)
- 2 lb
- Miscellaneous
- Package Contents

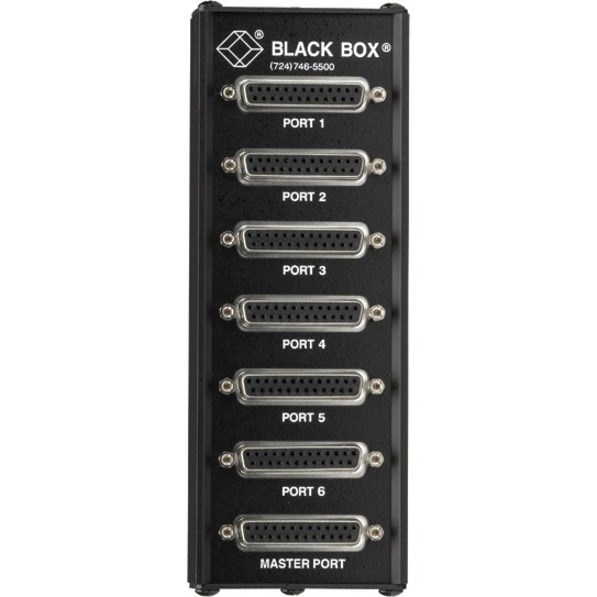

- 6-Port (MS-6) Modem Splitter
- 1 x DB25 Extension Cable
- 1 x Serial AT Adapter
- Additional Information
- Leads Supported - Pins 1-8, 15, 17, 20
- Main Channel Interface - DTE
- Protocol - Synchronous or asynchronous
- Subchannel Interface - DCE
- Interface - RS-232 (master port DTE, slave ports DCE)
- Connectors - (7) DB25 F
- Country of Origin
- China
