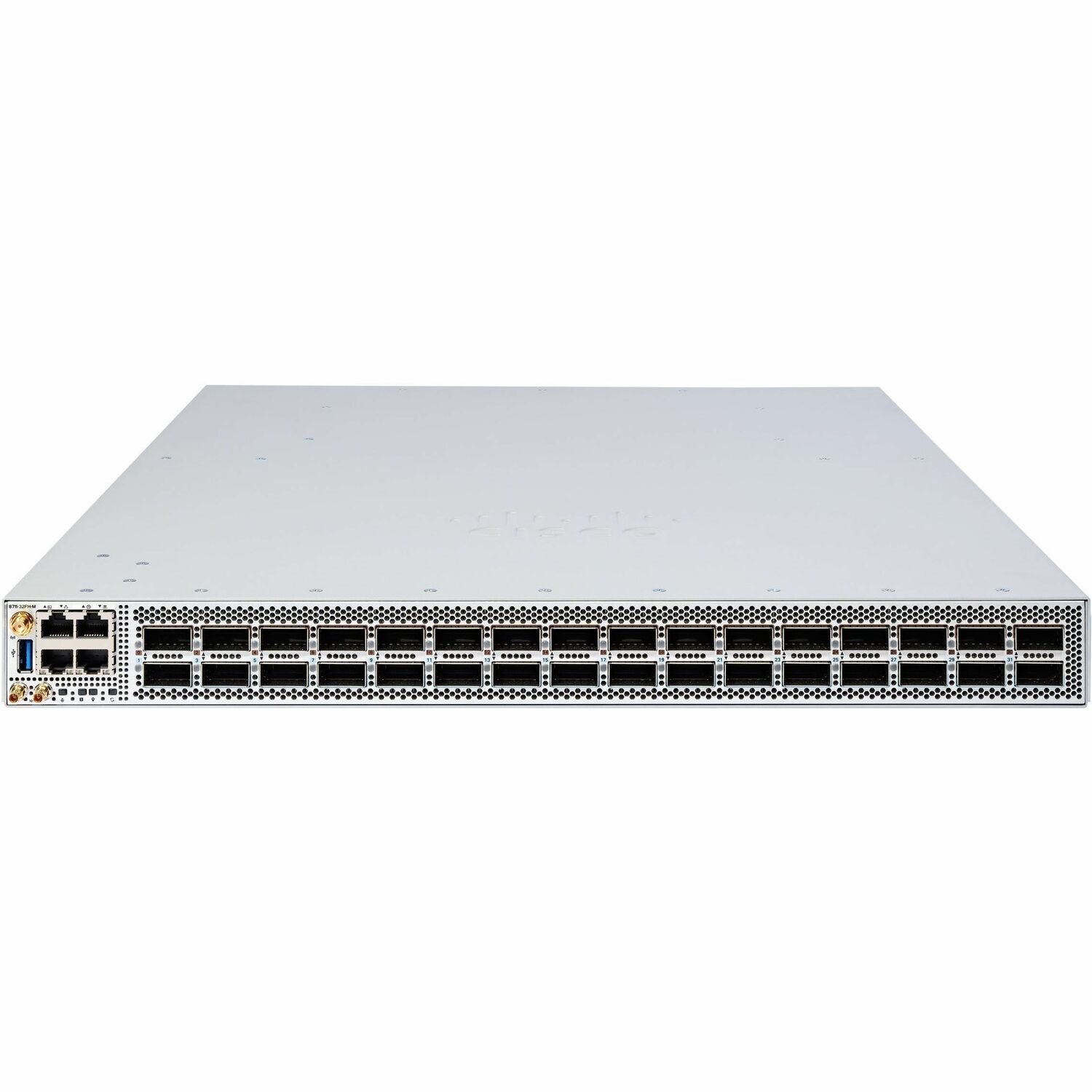

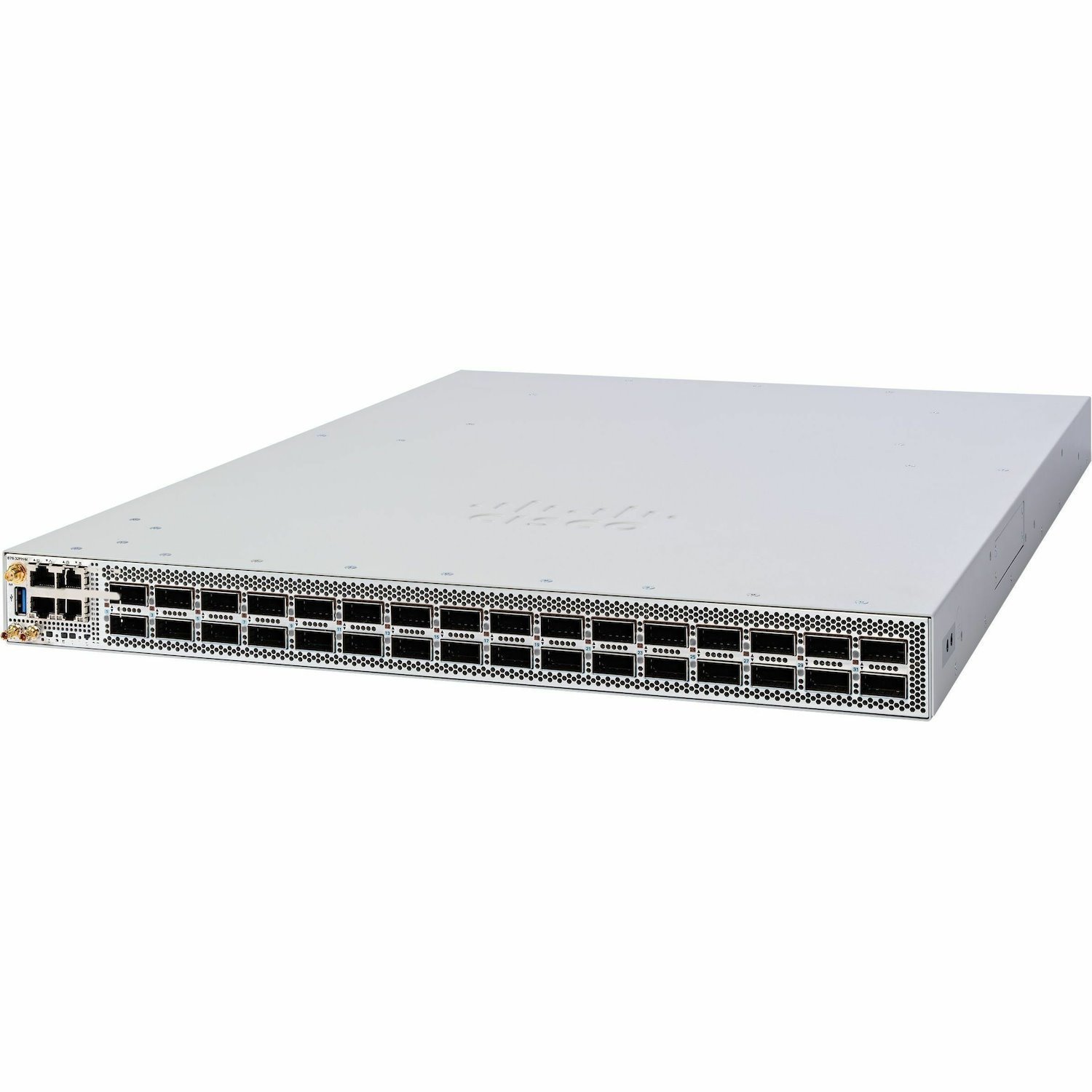

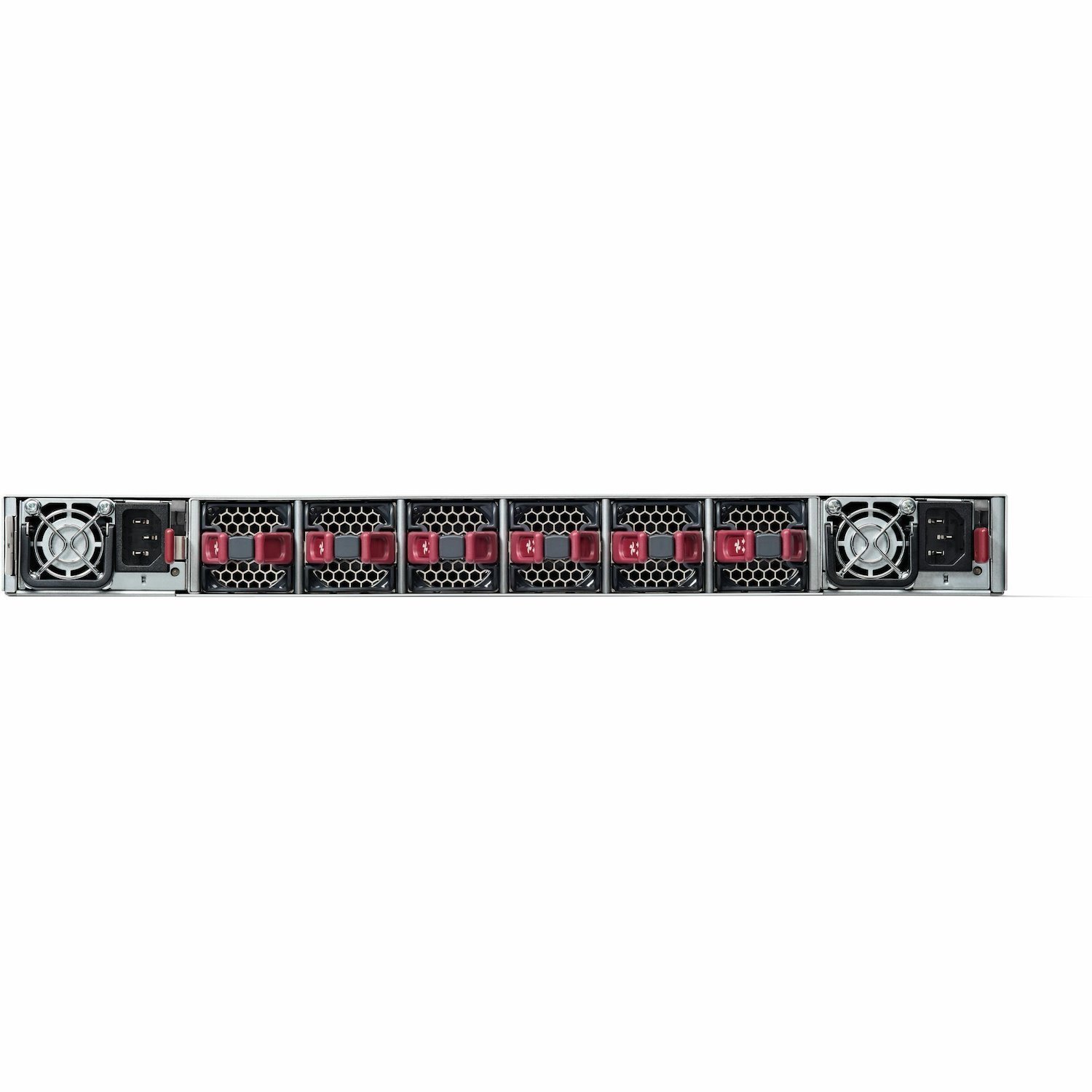

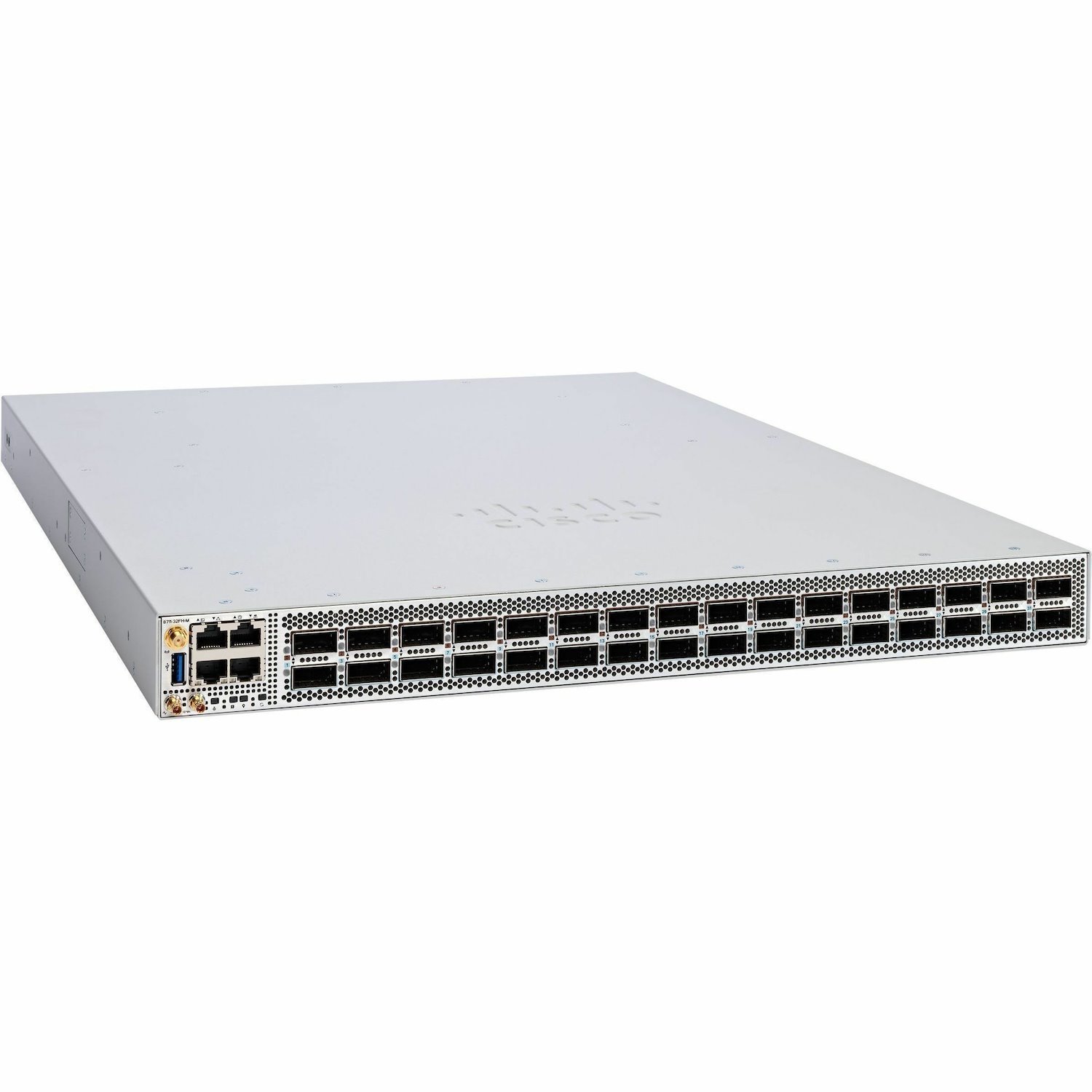

The Cisco 8700 series is an addition to the Cisco 8000 Series Routers powered by Cisco Silicon One™ processors. 8700 products embody this cutting-edge innovation of the 8000 portfolio, offering advanced features engineered for seamless integration and scalability. This helps expand into aggregation and edge use cases by providing high-capacity solution tailored for the demands of the modern metro networks.
With the agility of Silicon One enabling applications at scale delivered on power and space optimized form factors, Cisco 8700 systems can address a wide variety of use cases such a business edge, residential aggregation, 5G mobile backhaul, provider core, and internet peering.
- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Series
- 8700
- Product Type
- Router
- Warranty
- Limited Warranty
- 1 Year
- Limited Warranty URL
- https://connectthedots.cisco.com/connectdots/serviceWarrantyFinderRequest?fl=sf#.
- Interfaces/Ports
- USB Standard
- USB 3.0 Type A
- Management Port
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 32
- Expansion Slot Type
- QSFP-DD
- QSFP56-DD
- Memory
- Standard Memory
- 64 GB

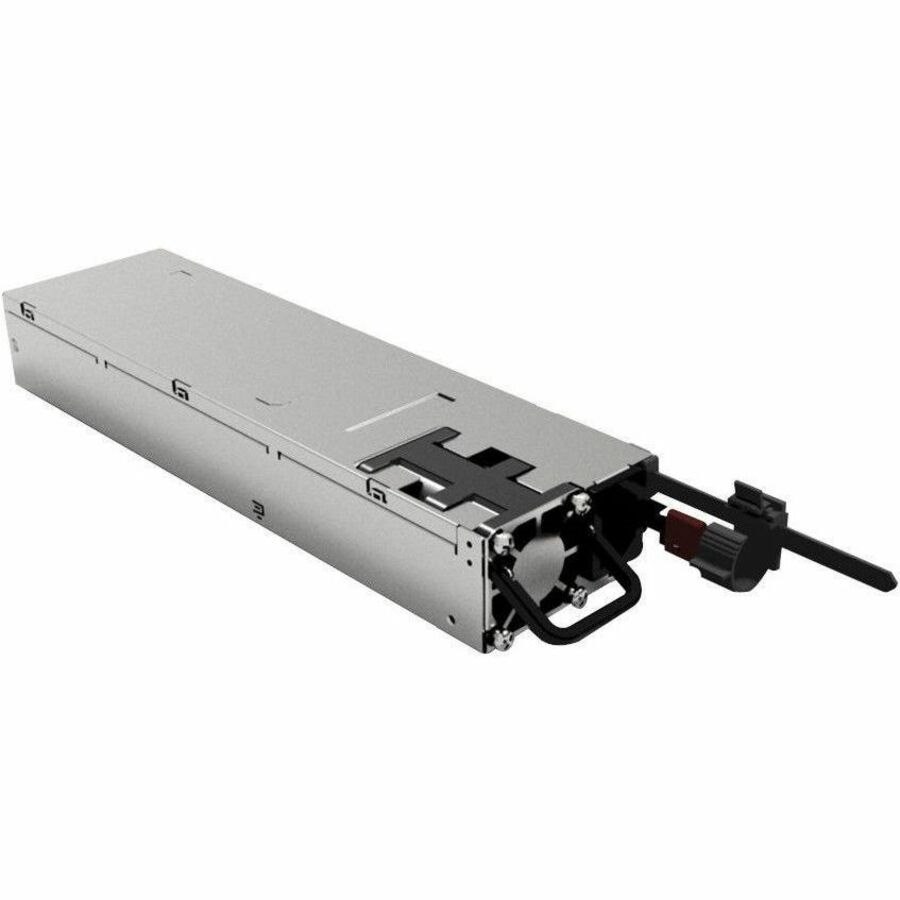

- Power Description
- Redundant Power Supply Supported
- Yes
- Power Source
- AC/DC
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.3"
- Depth
- 23.6"
- Weight (Approximate)
- 28.51 lb
- Miscellaneous
- Certifications & Standards
- ANSI / UL 60950-1
- CAN/CSA C22.2 No. 60950-1
- ANSI / UL 62368-1
- CAN/CSA C22.2 No. 62368-1
- EN / IEC 62368-1
- CISPR32
- EN 55032
- EN 61000-3-3
- EN IEC 61000-3-2
- EN 300 386 V2.1.23
- 47 CFR FCC Part 15
- ICES-003 Issue 7
- KS C 9832
- KS C 9610-3-2
- KS C 9610-3-3
- VCCI-CISPR 32
- CNS 15936
- QCVN 118/BTTTT
- EN 301 489-1
- EN 301 489-19
- TEC 11016:2016_TEC/SD/DD/EMC-221/05/OCT-16
- CISPR35
- EN 55035
- EN IEC 61000-6-1
- EN IEC 61000-6-2
- EN 300 386 V2.1.23
- KS C 9835
- EN 301 489-1
- EN 301 489-19
- TEC 11016:2016_TEC/SD/DD/EMC-221/05/OCT-16
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
