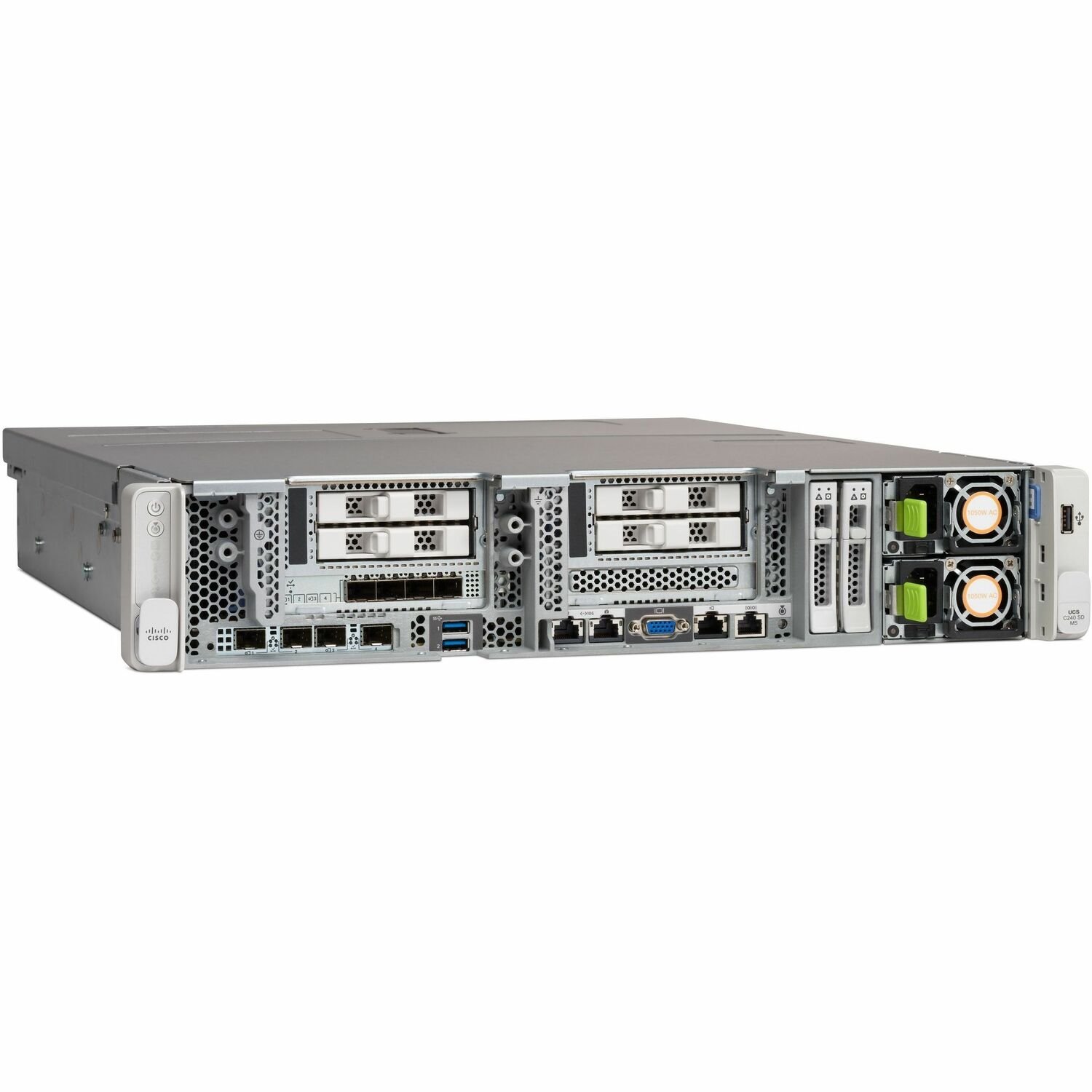

The UCS C240 SD M5 SFF server is a two-socket C-Series 2U chassis designed to operate both in standalone
and UCS environments. It serves the edge computing market that uses standard x86 based 19" rack servers.
The UCS C240 SD M5 SFF server is a derivative of the Cisco UCS 240 M5 server.
The following list summarizes the C240 SD M5 server features that are identical to the C240 M5 features:
- 2U form factor
- 2nd Gen Intel® Xeon® Processor Scalable Family (maximum 2 CPUs)
- 24 DIMM slots for 2933-MHz DIMMs with DIMM sizes up to 128 GB and 2666-MHz PMem with capacity points up to 512 GB
- Maximum memory size is 7.6 TB (using 12 x 128 GB DDR4 DIMMs and 12 x 512 GB PMem)
- Six PCIe slots
- Cisco 12G Modular SAS HBA
- Cisco 12G Modular RAID controller
- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Series
- C240 SD M5
- Product Condition
- Refurbished
- Product Type
- Barebone System
- Processor
- Number of Processors Supported
- 2
- Processor Supported
- Xeon Platinum
- Xeon Gold
- Xeon Silver
- Xeon Bronze
- 64-bit Processing
- Yes
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C621
- Memory
- Maximum Memory Supported
- 7.60 TB
- Memory Technology
- DDR4 SDRAM
- Memory Standard
- DDR4-2933/PC4-23466
- Total Number of Memory Slots
- 24
- Memory Card Supported
- SD
- microSD
- Storage
- Supported Storage Drive Interfaces
- Serial ATA
- SAS
- PCI Express
- Supported Storage Drive Types
- HDD
- SSD
- Controllers
- Controller Type
- 12Gb/s SAS
- RAID Supported
- Yes
- RAID Levels
- 0
- Display & Graphics
- Graphics Controller Manufacturer
- Matrox
- Graphics Controller Model
- G200e
- Graphics Memory Capacity
- 8 MB
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Gigabit Ethernet
- I/O Expansions
- Total Number of Expansion Slots
- 6
- Interfaces/Ports
- Total Number of USB Ports
- 2
- Number of USB 3.0 Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 2
- Number of VGA Ports
- 1
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Form Factor
- Rack-mountable
- Rack Height
- 2U
- Height
- 3.4"
- Width
- 19"
- Depth
- 22.9"
- Weight (Approximate)
- 40.57 lb
