- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Series
- C480 M5
- Product Condition
- Refurbished
- Product Type
- Barebone System

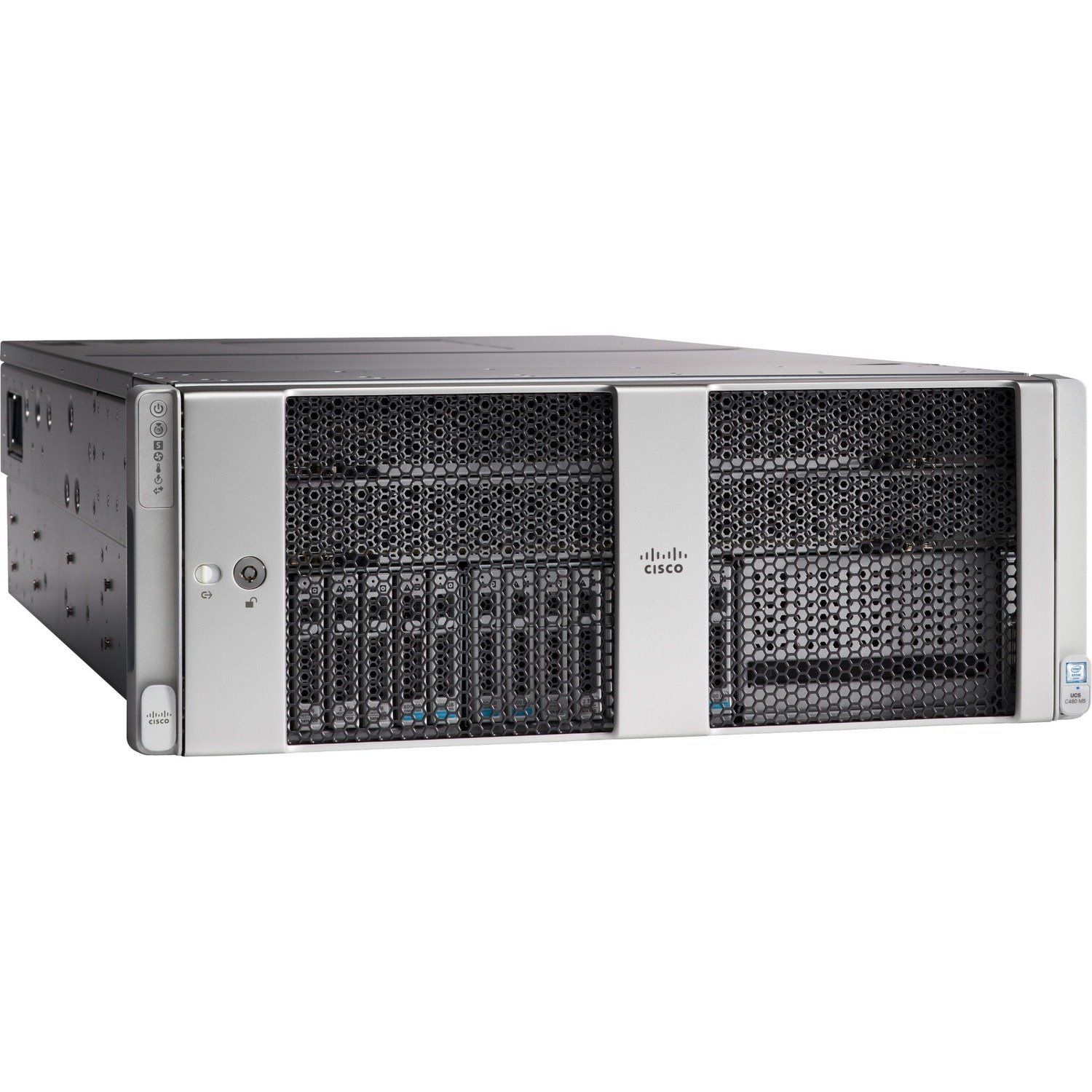

The Cisco UCS C480 M5 High-Performance Rack Server is a four-rack-unit (4RU) server supporting the Intel® Xeon® processor scalable family CPUs, with up to 6 terabytes (TB) of double-data-rate 4 (DDR4) memory1 in 48 slots, and up to 32 small form factor (SFF), hot-swappable2 SAS/SATA/PCIe NVMe disk drives.
12 PCI Express (PCIe) expansion slots support Cisco UCS C-Series network adapters storage controllers, and up to 6 GPUs, with additional I/O provided by two 10GBase-T LOM ports and one 1GbE dedicated out-of-band (OOB) management port. A separate PCIe slot is reserved inside the chassis for a RAID controller card.
- Processor
- Number of Processors Supported
- 4
- Processor Supported
- Xeon Platinum
- Xeon Gold
- Xeon Silver
- Xeon Bronze
- 64-bit Processing
- Yes
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C620
- Memory
- Maximum Memory Supported
- 6 TB
- Memory Technology
- DDR4 SDRAM
- Memory Standard
- DDR4-2933/PC4-23466
- Total Number of Memory Slots
- 48
- Intel Optane Memory Ready
- Yes
- Controllers
- Controller Type
- Serial ATA
- 12Gb/s SAS
- Display & Graphics
- Graphics Memory Capacity
- 256 MB
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Gigabit Ethernet
- I/O Expansions
- Total Number of Expansion Slots
- 12
- Number of PCI Express x8 Slots
- 6
- Number of PCI Express x16 Slots
- 6
- Interfaces/Ports
- Total Number of USB Ports
- 3
- Number of USB 3.0 Ports
- 3
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Maximum Power Supply Wattage
- 1600 W
- Physical Characteristics
- Form Factor
- Rack-mountable
- Rack Height
- 4U
- Height
- 6.9"
- Width
- 19"
- Depth
- 32.7"
- Weight (Approximate)
- 146 lb
- Miscellaneous
- Package Contents
- UCS C480 M5 Barebone System
- Blanking Panels for Empty Drive Locations (to maintain cooling air flow)
- Rail Kit
