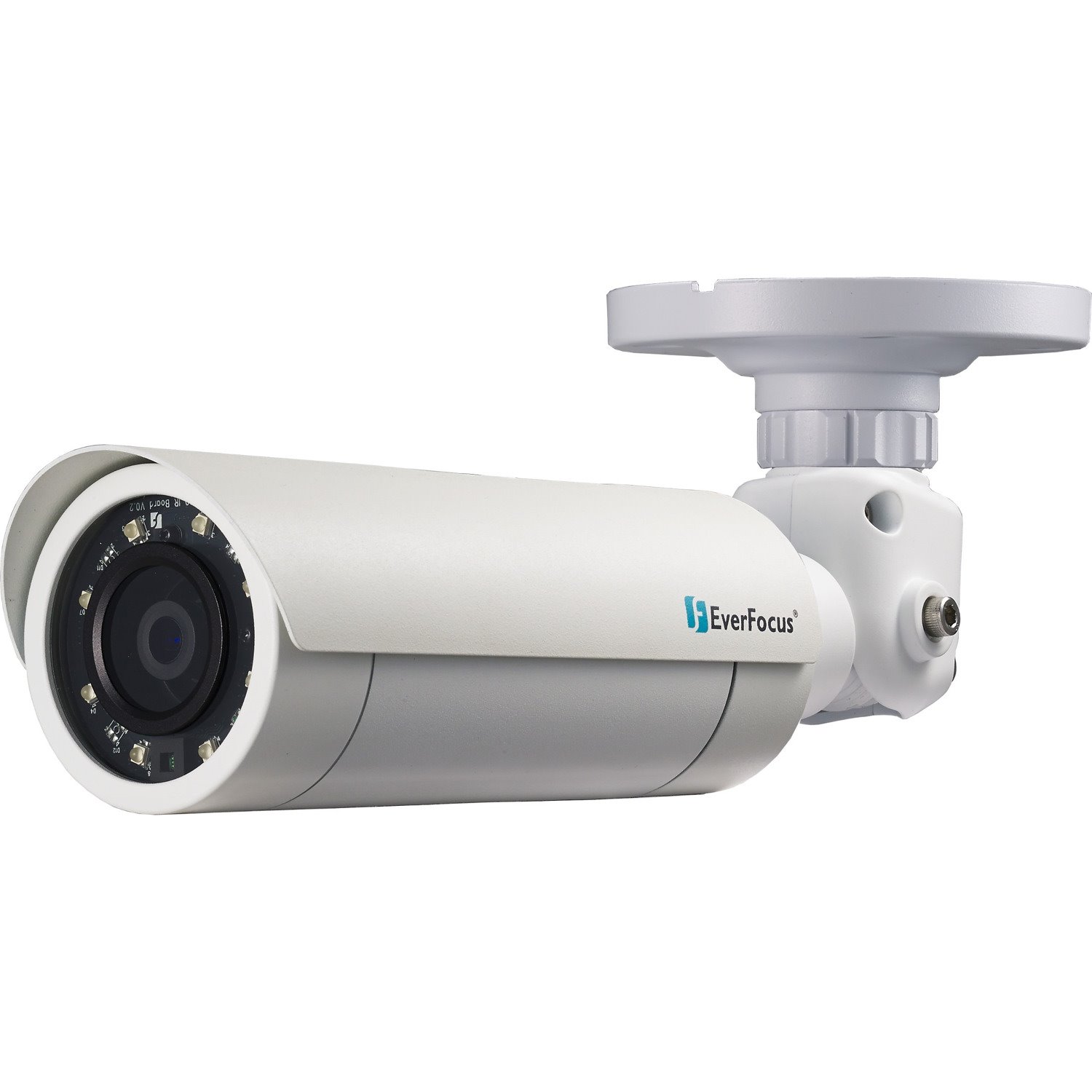

The EZN1260 is a 2 Megapixel small form-factor bullet IP camera, providing 30fps at 1920 x 1080 viewing resolution. The camera supports quad streams from H.264, MPEG-4 and M-JPEG video compression formats. Equipped with weather resistance (IP66) housing and eight IR LEDs that enable night visibility for up to 20 meters, the camera meets a wide variety of outdoor surveillance needs. The camera has a built-in micro SDHC card slot, providing local recording when an event is triggered. Power over Ethernet (IEEE 802.3af) supplies power to the camera via the network for easy installation with only one cable. This eliminates the need for power cables and reduces installation costs. EZN1260 conforms to ONVIF / PSIA for compatibility with other network video devices including devices from other manufacturers. You can also use EverFocus mobile applications to remotely monitor the live views of the cameras through your handheld devices; or use EverFocus CMS to remotely manage multiple IP devices connected on the network.
- General Information
- Manufacturer
- EverFocus Electronics Corporation
- Manufacturer Website Address
- http://www.everfocus.com
- Brand Name
- EverFocus
- Product Line
- NeVio
- Product Type
- Network Camera
- Display & Graphics
- Image Sensor Type
- CMOS
- Image Sensor Size
- 1/2.7"
- White Balance Modes
- AWB
- Color Supported
- Color
- Monochrome
- Field of View
- 87°
- Effective Camera Resolution
- 2 Megapixel
- Video
- Video Formats
- H.264
- MJPEG
- MPEG-4
- Maximum Video Resolution
- 1920 x 1080
- Maximum Frame Rate
- 30 fps
- Video Signal Format
- NTSC
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 3.60 mm
- Lens Included
- Yes
- Maximum Aperture
- f/1.8
- Digital Zoom
- 10x
- Exposure
- Shortest Shutter Speed
- 1/15000 Second
- Longest Shutter Speed
- 4 Second
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet
- Yes
- Ethernet Technology
- Fast Ethernet
- Protocols
- RTP
- RTSP
- RTCP
- IGMP
- ARP
- ONVIF
- PSIA
- IPv6
- UDP
- ICMP
- DHCP
- NTP
- DNS
- DDNS
- SMTP
- SNMP
- FTP
- HTTP
- HTTPS
- PPPoE
- UPnP
- Bonjour
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Audio Line In
- Yes
- Audio Line Out
- Yes
- Power Description
- Maximum Power Consumption
- 11.04 W
- Physical Characteristics
- Form Factor
- Bullet
- Durability
- Weather Resistant
- Depth
- 7.8"
- Diameter
- 2.4"
- Weight (Approximate)
- 1.59 lb
- Miscellaneous
- Features
- SD Card Local Storage
- Motion Detection
- 2D Digital Noise Reduction (2DNR)
- Day/Night
- Tamper Detection
- 3D Digital Noise Reduction
- Privacy Masking
- Back Light Compensation (BLC)
- Indoor/Outdoor
- Outdoor
- Package Contents
- 2 Megapixel Full HD IR & WDR Network Camera
- 1 x Quick Mounting Ring
- 4 x Long Screws
- 4 x Screw Anchors
- 4 x Short Screw
- 1 x Hexagon Key
- 1 x Hexagon Wrench
- 1 x Cable Gland
- 1 x Test-Out Cable
- 1 x 4-Pin Terminal Block
- 1 x RJ-45 connector
- 1 x Power Pigtail Cable
- 1 x Desiccant Bag
- 1 x Software CD
- 1 x Quick Installation Guide
- Certifications & Standards
- IP66
- CE
- FCC
- Ingress Protection Rating
- IP66
- Security Features
- Passwort Protection
- IP Address Filtering
- HTTPS encryption
- SSL
- Platform Supported
- IOS
- Android
