Twist. Test. Stay Safe.

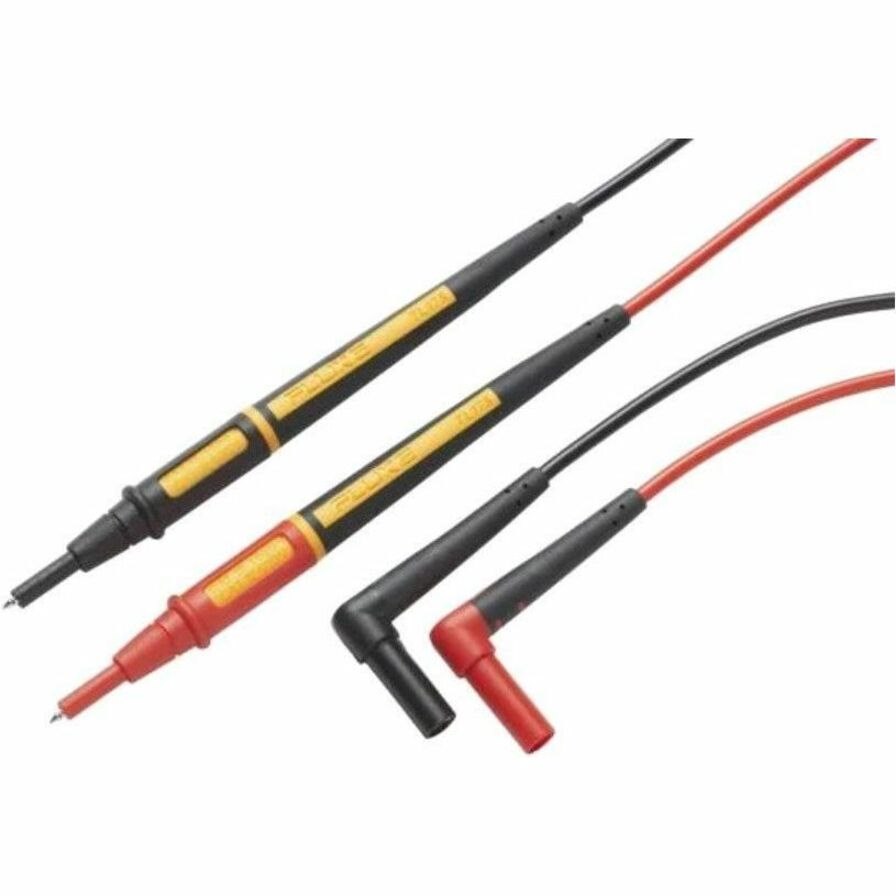

The Fluke TL175 TwistGuard™ Test Leads offer adjustable length test tips for use in different measurement environments. By simply twisting the test lead the user can change the exposed probe tip length from 19 mm to 4 mm (0.75 in to 0.16 in).
" They work well, are very durable, and add a whole new level to safety...along with the ability to twist them to expose the entire probe for more traditional feel while testing "- S.C., verified customer
Patented TwistGuard™ extendable tipThe adjustable tip shroud meets new electrical safety requirements to reduce tip exposure while providing the versatility needed for most measurements. The correct category rating for the tip exposure being used is always visible on the test leads. This makes the TL175 test leads suitable for use in many environments:
- CAT II 1000 V
- CAT III 1000 V
- CAT IV 600 V
WearGuard™ lead wire wear indicator makes it easier to see insulation wear and tear. If the inner, white insulation layer shows through the outer, black layer, damage is indicated, and the leads must be replaced. The silicone insulation withstands high temperatures and remains flexible in cold temperatures. While the universal input plugs are compatible with all instruments that accept standard 4 mm shrouded banana plugs.
- General Information
- Manufacturer
- Fluke Networks
- Manufacturer Website Address
- http://www.flukenetworks.com
- Brand Name
- Fluke Networks
- Product Line
- TwistGuard
- Product Type
- Test Lead
- Technical Information
- Features
- Heavy Duty
- Strain Relief
- Adjustable Length
- Physical Characteristics
- Product Material
- Silicone
- Material Details
silicone leads
- Miscellaneous
- Compatibility
Compatible products: Fluke TL175 TwistGuard™ Test Leads Clamp meters (11)Fluke 323 True RMS Clamp Meter
Fluke 324 True-RMS Clamp Meter with Temperature & Capacitance
Fluke 325 True RMS Clamp Meter
Fluke 365 Detachable Jaw True RMS AC/DC Clamp Meter
Fluke 373 True-RMS AC Clamp Meter
Fluke 376 FC True-RMS Clamp Meter with iFlex
Fluke 381 Remote Display True RMS AC/DC Clamp Meter with iFlex®
Fluke 902 True RMS HVAC Clamp Meter
Fluke 902 FC True-RMS HVAC Clamp Meter
Fluke a3000 FC Wireless AC Current Clamp Kit
Fluke a3001 FC Wireless iFlex® AC Current Clamp Kit
Digital multimeters (28)Fluke 787 ProcessMeter Digital Multimeter
Fluke 110 True-rms Digital Multimeter
Fluke 179 IMSK Industrial Multimeter Service Kit
Fluke 87V MAX True-rms Digital Multimeter
Fluke 87V MAX E2 Industrial Electrician Combo Kit
Fluke 113 Digital Multimeter
Fluke 114 Electrical Multimeter
Fluke 115 Field Technicians Digital Multimeter
Fluke 116 Digital HVAC Multimeter
Fluke 117 Electrician's Multimeter with Non-Contact Voltage
Fluke 117/323 Electricians Combo Kit, Digital Multimeter and Clamp Meter
Fluke 175 True-RMS Digital Multimeter
Fluke 177 True-RMS Digital Multimeter
Fluke 179 True-RMS Digital Multimeter
Fluke 233 Remote Display Digital Multimeter
Fluke 27 II Rugged Digital Multimeter
Fluke 279 FC True-rms Thermal Multimeter
Fluke 28 II Rugged Digital Multimeter
Fluke 287 True-RMS Electronics Logging Multimeter
Fluke 289 True-RMS Data Logging Multimeter
Fluke 3000 FC Series Wireless Multimeter
Fluke 3000 FC General Maintenance System
Fluke 3000 FC HVAC System
Fluke 3000 FC Industrial System
Fluke 77 IV Digital Multimeter
Fluke 87V Industrial Multimeter
Fluke 88V Deluxe Automotive Multimeter
Fluke 28 II Ex Intrinsically Safe True RMS Digital Multimeter
Insulation testers (4)Fluke 1503 Insulation Resistance Meter
Fluke 1507 Insulation Resistance Tester
Fluke 1577 Insulation Multimeter
Fluke 1587 FC Insulation Multimeter
Multifunction calibrators (2)Fluke 725 Multifunction Process Calibrator
Fluke 726 Precision Multifunction Calibrators
Portable oscilloscopes (14)Fluke 190-062 ScopeMeter® Test Tool
Fluke 190-062/S ScopeMeter® Test Tool
Fluke 190-102 ScopeMeter® Test Tool
Fluke 190-102/S ScopeMeter® Test Tool
Fluke 190-104 ScopeMeter® Test Tool
Fluke 190-202 ScopeMeter® Test Tool
Fluke 190-202/S ScopeMeter® Test Tool
Fluke 190-204 ScopeMeter® Test Tool
Fluke ScopeMeter 190-204/S Oscilloscope
Fluke 190-504 500MHz ScopeMeter® Test Tool
Fluke ScopeMeter 190-504/S Portable Oscilloscope
Fluke 190 Series III ScopeMeter® Test Tools
Fluke MDA-510 and MDA-550 Motor Drive Analyzers
Fluke MDA-550 Series III Motor Drive Analyzer
Power quality analyzers (1)Fluke 345 Power Quality Clamp Meter - Electronic Power Meter
Pressure calibrators (2)Fluke 712 RTD Process Calibrator
Fluke 717 Pressure Calibrator
Temperature calibrators (2)Fluke 714 Thermocouple Calibrator
Fluke 724 Temperature Calibrator
mA loop calibrators (7)Fluke 705 Loop Calibrator
Fluke 707 Current Loop Calibrator with Quick Click Knob
Fluke 715 Volt/mA Loop Calibrator
Fluke 772 Milliamp Process Clamp Loop Meter
Fluke 773 Milliamp Process Clamp Meter
Fluke 787B ProcessMeter™
Fluke 789 ProcessMeter™
- Country of Origin
- Taiwan
