Use an HDMI source with an SDI display or downstream equipment

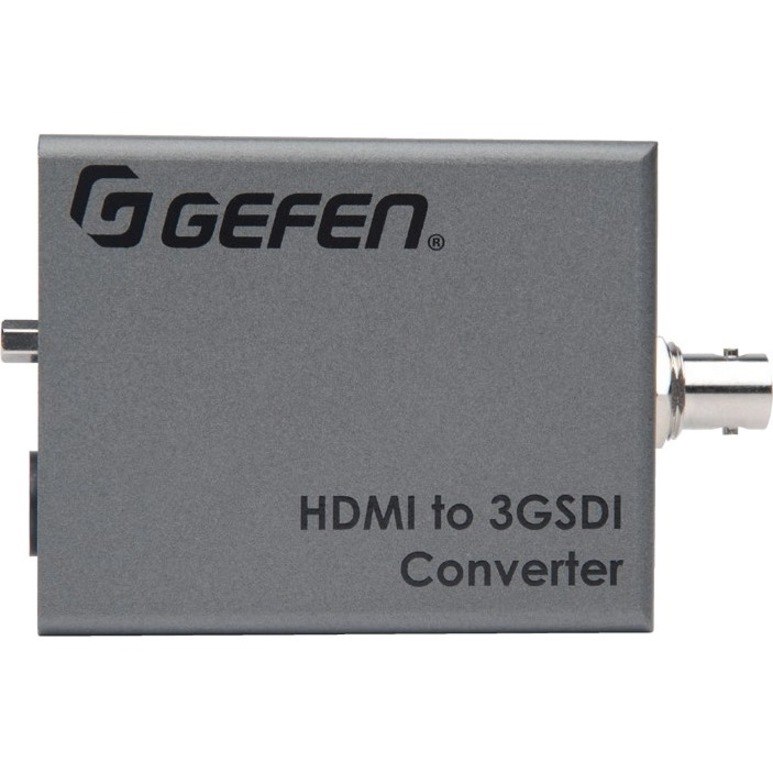

The Gefen HD-3G-C converts audio and video from HDMI to 3G-SDI and single link HD-SDI. Resolutions up to 1080p Full HD and audio formats up to 8 channels of LPCM are supported. This product is fully compatible with the Gefen Syner-G™ software suite. The Gefen Syner-G™ is a powerful set of software tools specifically designed to help discover, configure/customize, manage, monitor, and upgrade Gefen products. The Gefen EXT-HD-3G-C's compact enclosure, while light enough to be held in place using double sided Velcro® tape, features an ISO standard 1/4-20 attachment provision as well as a detachable surface-mounting bracket. This, along with a flexible power input circuitry capable of accepting a wide range of DC voltages and a locking power supply connector, make the EXT-HD-3G-C ideal for cutting edge mobile A/V applications as well as high performance fixed installations.
- General Information
- Manufacturer
- Gefen, Inc
- Manufacturer Website Address
- http://www.gefen.com
- Brand Name
- Gefen
- Packaged Quantity
- 1
- Product Type
- Signal Converter
- Technical Information
- Minimum Frequency
- 150 MHz
- Maximum Frequency
- 225 MHz
- Interfaces/Ports
- HDMI In
- Yes
- USB
- Yes
- Number of HDMI Inputs
- 1
- Physical Characteristics
- Height
- 1.2"
- Width
- 2.9"
- Depth
- 2.3"
- Weight (Approximate)
- 5.29 oz
- Miscellaneous
- Package Contents
- 1 x HDMI to 3GSDI Converter
- 1 x 6 ft. Locking HDMI Cable (CAB-HD-LCK-06MM)
- 1 x Surface Mounting Bracket
- 1 x 12V DC Power Supply (EXT-PS121.5AIP-3P)
- 1 x Quick-Start Guide (QSG-EXT-HD-3G-C)
- Additional Information
- Converts HDMI to SDI
- Input resolutions up to 1920 x 1200 (WUXGA) and 1080p Full HD
- Output resolutions up to 1080p60
- Supports HDMI 12 bit color and SDI 10-bit color
- Supports Color Spaces: 4:4:4 (RGB and YCbCr) and 4:2:2 (YCbCr )
- Supports 3G-SDI Levels A and B
- Up to LPCM 7.1 audio support
- Field configurable via DIP switch settings or Gefen Syner-G™ software
- Gefen Syner-G™ simplifies in-field firmware updates and advanced EDID management
- Mini USB port for use with Gefen Syner-G™
- Wide power supply operating range (6V to 24V DC)
- Locking power supply connector
- 1/4-20 industry-standard camera gear attachment thread on bottom
- Surface-mountable using the included detachable bracket
