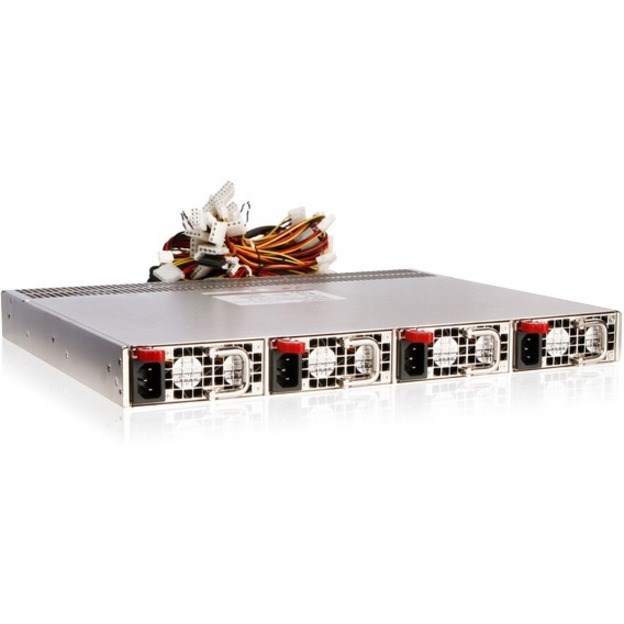

XEAL quad AC input 1U 2000W Redundant Power Supply IS-2000R4H1UP. It offers your server and workstation zero down time with full 2000W power redundancy. Active PFC, temperature control fan, hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. A good start for your mission critical system integrations.
- General Information
- Manufacturer
- iStarUSA, Inc
- Manufacturer Website Address
- http://www.istarusa.com
- Brand Name
- Xeal
- Product Type
- Power Supply
- Technical Information
- Specification Compliance
- ATX12V/EPS12V
- Efficiency
- 75%
- Power Factor Correction (PFC)
- Active
- Protection Type
- Short Circuit
- Over Current
- Over Voltage
- Over Power
- Reliability
- MTBF
- 100000 Hour
- Power Description
- Input Voltage Type
- AC
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 100 V AC - 240 V AC
- Output Voltage
- 3.3 V DC
- 5 V DC
- 12 V DC
- -5 V DC
- -12 V DC
- Output Voltage Detail
- 3.3 V DC @ 60 A
- 5 V DC @ 60 A
- 12 V DC @ 158 A
- -5 V DC @ 500 mA
- -12 V DC @ 800 mA
- 5 V DC @ 3 A
- Input Current
- 15 A @ 110V
- 10 A @ 220V
- Output Current
- 60 A
- 158 A
- 500 mA
- 800 mA
- 3 A
- Output Power
- 2000 W
- Interfaces/Ports
- Receptacles
- 1 x 24-pin ATX Motherboard
- 1 x 4-pin ATX Motherboard
- 1 x 8-pin EPS12V Motherboard
- 2 x Serial ATA
- 7 x 4-pin SP4 Floppy Drive
- 30 x 4-pin LP4 Peripheral Device
- Physical Characteristics
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 16.6"
- Depth
- 13.4"
- Miscellaneous
- Compatibility
- iStarUSA Storage Server Rackmount Chassis:
- E5M26
- E8M42
- E9M50
- V-4-M24SA
- Certifications & Standards
- UL 60950-1 2000 Edition
- IEC60950-1, 3rd Edition
- EU Low Voltage Directive (73/23/EEC) (CB)
- TÜV
- FCC Part15 ( Radiated & Conducted Emissions )
- CISPR 22,3rd Edition / EN55022: 1998 + A1: 2000)
- PFC Harmonic: EN61000-3-2:2000
- Flicker: EN61000-3-3: 1995 + A1: 2002
- Immunity against: EN55024: 1998 + A1: 2001 and A2: 2003
- Electrostatic discharge: IEC 61000-4-2
- Radiated field strength: IEC 61000-4-3
- Fast transients: IEC 61000-4-4
- Surge voltage: IEC 61000-4-5
- RF Conducted: IEC 61000-4-6
- Voltage Dips and Interruptions: IEC 61000-4-11
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
