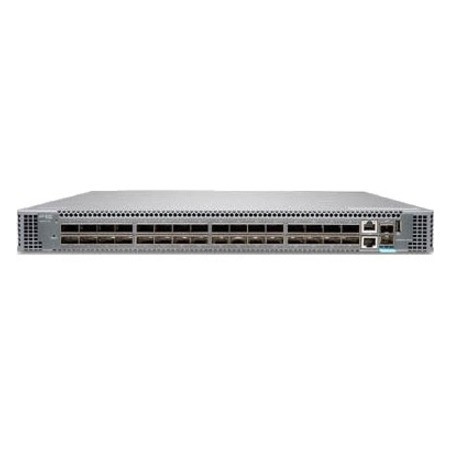

Juniper QFX5120-32C Ethernet Switch

  • Part: 1627677
  • Model: QFX5120-32C-AFO
$23,066.00

Availability

In Stock

  • General Information
    • Manufacturer
    • Juniper Networks, Inc
    • Manufacturer Website Address
    • http://www.juniper.net
    • Brand Name
    • Juniper
    • Product Series
    • QFX
    • Product Type
    • Ethernet Switch

Featuring Layer 3 gateway capabilities for routing between virtualized and bare-metal servers, the QFX5120 is designed for extremely agile data centers that require support for overlay/underlay network architectures. Native 25GbE with 100GbE uplink ports on the QFX5120-48Y, combined with 32 ports of 100GbE on the QFX5120-32C, make the QFX5120 family ideal for leaf-and-spine network deployments.

The high-performance Juniper Networks® QFX5120 Switch fits the bill, providing the foundation for dynamic data centers. Native 25GbE ports on the QFX5120-48Y satisfy the growing demand for server access speeds, while high-density 100GbE ports on the QFX5120-32C satisfy the need for compact, lower power devices in the spine. The QFX5120 is packed with software features that support traditional fabric designs with multichassis link aggregation (MC-LAG) or evolving SDN architectures with Ethernet VPN (EVPN)/Virtual Extensible LAN (VXLAN) on IP fabric underlays.

Architecture and Key Components

The QFX5120 includes native 25GbE (fiber only) and 100GbE fixed-configuration options with rich L2, L3, EVPN, and MPLS features. The QFX5120 runs the same reliable, high performance Juniper Networks Junos® operating system used by all Juniper Networks QFX Series and EX Series Ethernet Switches, SRX Series Services Gateways, and Juniper Networks routers, ensuring a consistent control plane feature implementation and user experience across the entire Juniper infrastructure.

Product Options

The QFX5120 switch family includes two compact, 1 U platforms that provide wire-speed packet performance, very low latency, and a rich set of Junos OS features.

  • The QFX5120-48Y is a 25GbE/100GbE data center access switch offering 48 small form-factor pluggable plus (SFP+) transceiver ports and eight quad SFP (QSFP28) ports that can be configured as 8x40GbE or 8x100GbE ports, with an aggregate throughput of 4 Tbps or 2 Bpps per switch. For added flexibility, each QSFP28 port can also be configured as 4x25GbE ports using breakout cables, while each QSFP+ port can be configured as 4x10GbE ports using breakout cables, increasing the number of supported 25GbE and 10GbE ports per switch to 80.
  • The QFX5120-32C is a compact 100GbE data center spine switch offering 32 QSFP28 or 32 quad SFP+ (QSFP+) ports. The 100GbE ports can also be configured as 4x25GbE ports using breakout cables, enabling the QFX5120-32C to be used as a high-density 25GbE top-of-rack switch.
In addition to a high-throughput Packet Forwarding Engine (PFE), the performance of the QFX5120 control plane is enhanced by a powerful 2.2 GHz quad-core Intel CPU with 16 GB of memory and 64 GB SSD storage.

  • Warranty
    • Limited Warranty
    • 1 Year

  • Interfaces/Ports
    • Uplink Port
    • Yes
    • Modular
    • Yes
    • Port/Expansion Slot Details
    • 32 x 100 Gigabit Ethernet Expansion Slot
  • Media & Performance
    • Media Type Supported
    • Optical Fiber
    • Ethernet Technology
    • 100 Gigabit Ethernet
    • Network Technology
    • 100GBase-X
  • I/O Expansions
    • Expansion Slot Type
    • QSFP28
  • Network & Communication
    • Layer Supported
    • 3
    • Networking Standards
    • IEEE 802.1D
    • IEEE 802.1w
    • IEEE 802.1s
    • IEEE 802.1Q
    • IEEE 802.3ad
    • IEEE 802.1p
    • IEEE 802.1Qbb
    • IEEE 802.1ad
    • IEEE 802.1ab
    • IEEE 802.3x
    • IEEE 802.1Qaz
  • Management & Protocols
    • Manageable
    • Yes
  • Power Description
    • Frequency
    • 50 Hz
    • 60 Hz
    • Power Source
    • Power Supply
    • Redundant Power Supply Supported
    • Yes
    • Number of Power Supplies Supported
    • 2
    • Number of Power Supplies Installed
    • 2
    • Power Consumption
    • 515 W
  • Physical Characteristics
    • Compatible Rack Unit
    • 1U
    • Form Factor
    • Rack-mountable
    • Height
    • 1.7"
    • Width
    • 17.3"
    • Depth
    • 20.3"
    • Weight (Approximate)
    • 21.12 lb
  • Miscellaneous
    • Country of Origin
    • Taiwan
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
    • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    • China Restriction of Hazardous Substances (China RoHS)
