• General Information
• • Manufacturer
  • Lantronix, Inc
  • Manufacturer Website Address
  • http://www.lantronix.com
  • Brand Name
  • Transition Networks
  • Product Type
  • Fast Ethernet Card

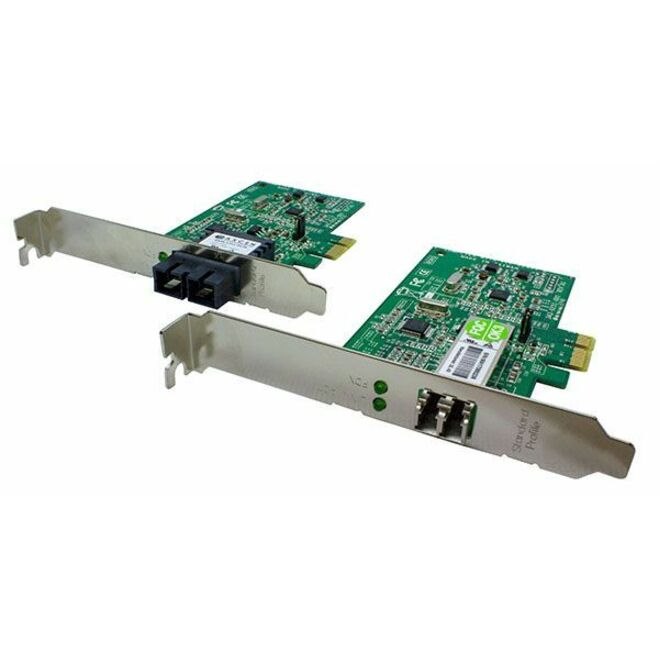

N-FXE-02B Series Overview

N-FXE-02B Series is a Fiber Fast Ethernet to PCI-Express (PCIe) bus adapter that fully complies with all IEEE 802.3u and 100Base-FX standards. It provides up to 200Mbps full-duplex bandwidth capacity to support high-end systems. In addition, with advanced functions like VLAN filtering packet processing, the adapter provides added performance, flexible configuration and secure networking to users in a standards-based environment.

The PCI-Express (PCIe) design gives you the maximum possible bandwidth and bus efficiency, along with low power consumption.

For users equipped with PCI-Express systems, N-FXE-02B Series provides the ability to easily build or connect to Fast Ethernet fiber networks.

Features

• PCI-Express x1 Interface
• IEEE 802.3x Full-Duplex Flow Control
• Supports IEEE 802.1Q VLAN tagging
• IPv6 Capable
• Wake-on-LAN (WoL) power management
• Microsoft certified drivers
• PXE remote boot support
• RoHS Compliance
• UEFI (PC platform BIOS must support)
• Message Signaled Interrupts (MSI)
• Extended Message Signaled Interrupts (MSI-X)
• TCP Segmentation Offload (large send v1 and large send v2 support)
• Available with ST, SC, LC and MT-RJ multimode fiber connectors
• Standard bracket attached, low-profile bracket included
• Compliant with PCIe Rev 1.1 interface
• Supports Jumbo Frame
• ACPI Supported (if PC BIOS supports)

• Warranty
• • Limited Warranty
  • Lifetime
