- General Information
- Manufacturer
- Omnitron Systems
- Manufacturer Website Address
- http://www.omnitron-systems.com
- Brand Name
- Omnitron Systems
- Product Line
- FlexPoint
- Product Series
- GX/T
- Package Type
- Retail
- Product Type
- Transceiver/Media Converter

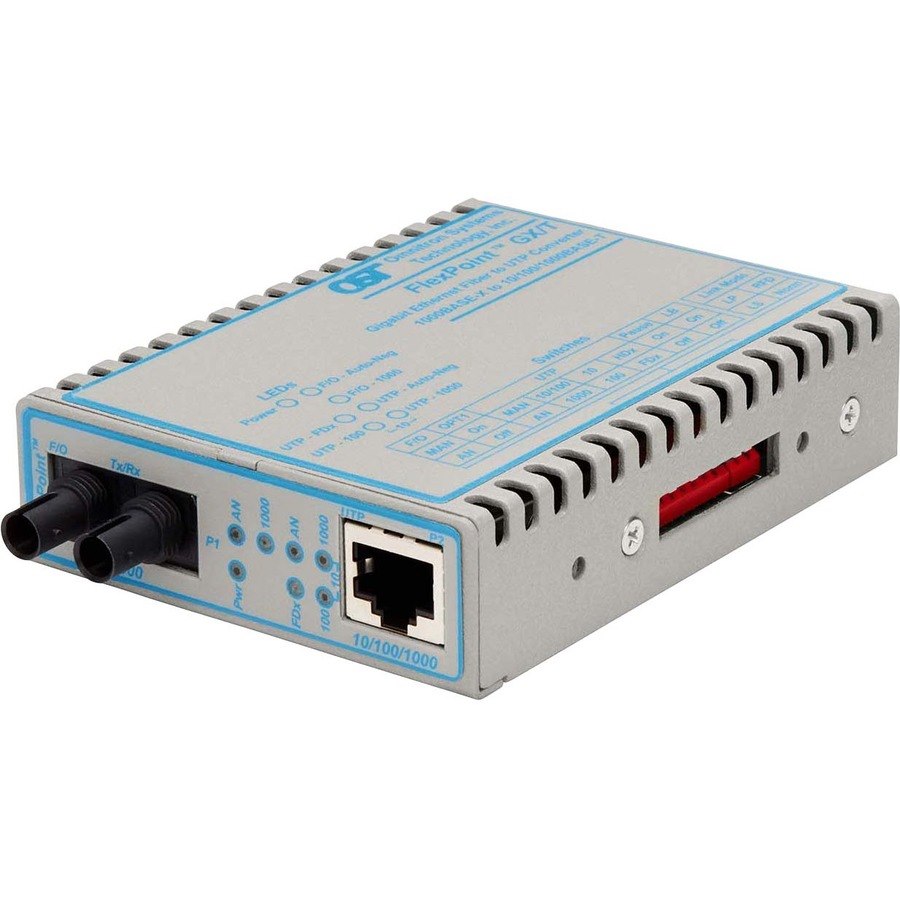

The FlexPoint GX/T is a 10/100/1000BASE-T UTP to 1000BASE-X modular fiber media converter that supports jumbo frames up to 10,240 bytes. The GX/T features Small Form Pluggable (SFP) transceivers that support both 100BASE-FX and 1000BASE-X for interoperability with Gigabit and Fast Ethernet fiber equipment. SFP transceivers enable adaptability to different fiber types, speed and distances, and support Coarse Wave Division Multiplexing (CWDM) technology to increase the bandwidth capacity of fiber infrastructure.
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- DVI
- No
- USB
- No
- Parallel Port
- No
- Digital Audio
- No
- Digital Audio/Video
- No
- Management Port
- No
- Number of Network (RJ-45) Ports
- 1
- Number of ST Ports
- 1
- ST Port Type
- Duplex
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Fiber Optic Cable Wavelength
- 850 nm
- Maximum Distance Supported
- 0.55 km
- Network & Communication
- Ethernet Technology
- Ethernet
- Fast Ethernet
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-SX
- Power Description
- Input Voltage
- 9 V DC
- Physical Characteristics
- Form Factor
- Rack-mountable
- Desktop
- External
- Wall Mountable
- Height
- 1"
- Width
- 3"
- Depth
- 4"
- Weight (Approximate)
- 6 oz
- Miscellaneous
- Package Contents
- FlexPoint GX/T ST Multimode 550m No Power Adapter
- User Manual
- Additional Information
Input Voltage:
- 5-32VDC via 2.5mm barrel (0.3A @ 9VDC)
- 5VDC via Molex connector (0.5A @ 5VDC)
- Compatibility
- Omnitron Systems Chassis:
- 5-Module
- 14-Module
- Certifications & Standards
- EIA/TIA 568A/B
- UL
- CE
- FCC Class A
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3z 1000BASE-X
- IEEE 802.3ab 1000BASE-T
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin
- United States
