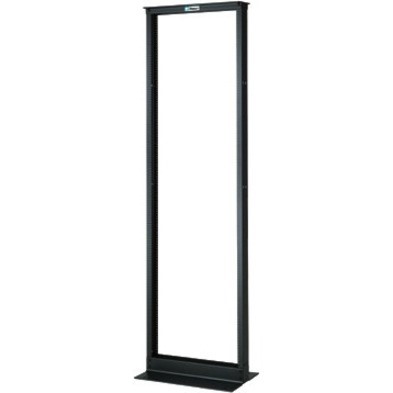

The data equipment rack shall meet EIA-310D standards and be constructed of extruded aluminum or steel capable of accepting 19" wide EIA equipment.The telecommunications rack shall be constructed of extruded aluminum and capable of accepting 23" wide telecommunications equipment. Rack construction method shall ensure an electrically bonded structure for ease of grounding. The 3" channel rack shall be UL listed for 1000 lbs. load rating and the 6" channel rack shall be UL listed for 1500 lbs. load rating. The equipment mounting rails shall be double-sided #12-24 EIA universal mounting hole spacing. The equipment mounting rails shall include printed rack space identification on the front and back and be numbered up. The channel of the rack shall be capable of mounting NetRunner™ or PatchRunner™ Vertical Cable Managers. 24 #12-24 mounting screws shall be included with the rack.
- General Information
- Manufacturer
- PANDUIT CORP
- Manufacturer Website Address
- http://www.panduit.com
- Brand Name
- Panduit
- Product Type
- Rack Cabinet
- Technical Information
- Application/Usage
- Patch Panel
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Product Material
- Aluminum
- Maximum Weight Capacity
- 1000 lb
- Height
- 84"
- Width
- 20.3"
- Depth
- 3"
- Rack Height
- 45U
- Rack Width
- 19"
- Miscellaneous
- Package Contents
- 2 Post Standard Equipment Rack
- Right and Left Mounting Rack Channels
- Top and Bottom Brackets
- Assembly Hardware with Paint Piercing Washers and Anti-Oxidizing Paste for Complete Rack Bonding
- Assembly Required
- Yes
- Country of Origin
- United States
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
