- General Information
- Manufacturer
- Server Technology, Inc
- Manufacturer Website Address
- http://www.servertech.com
- Brand Name
- Server Technology
- Product Line

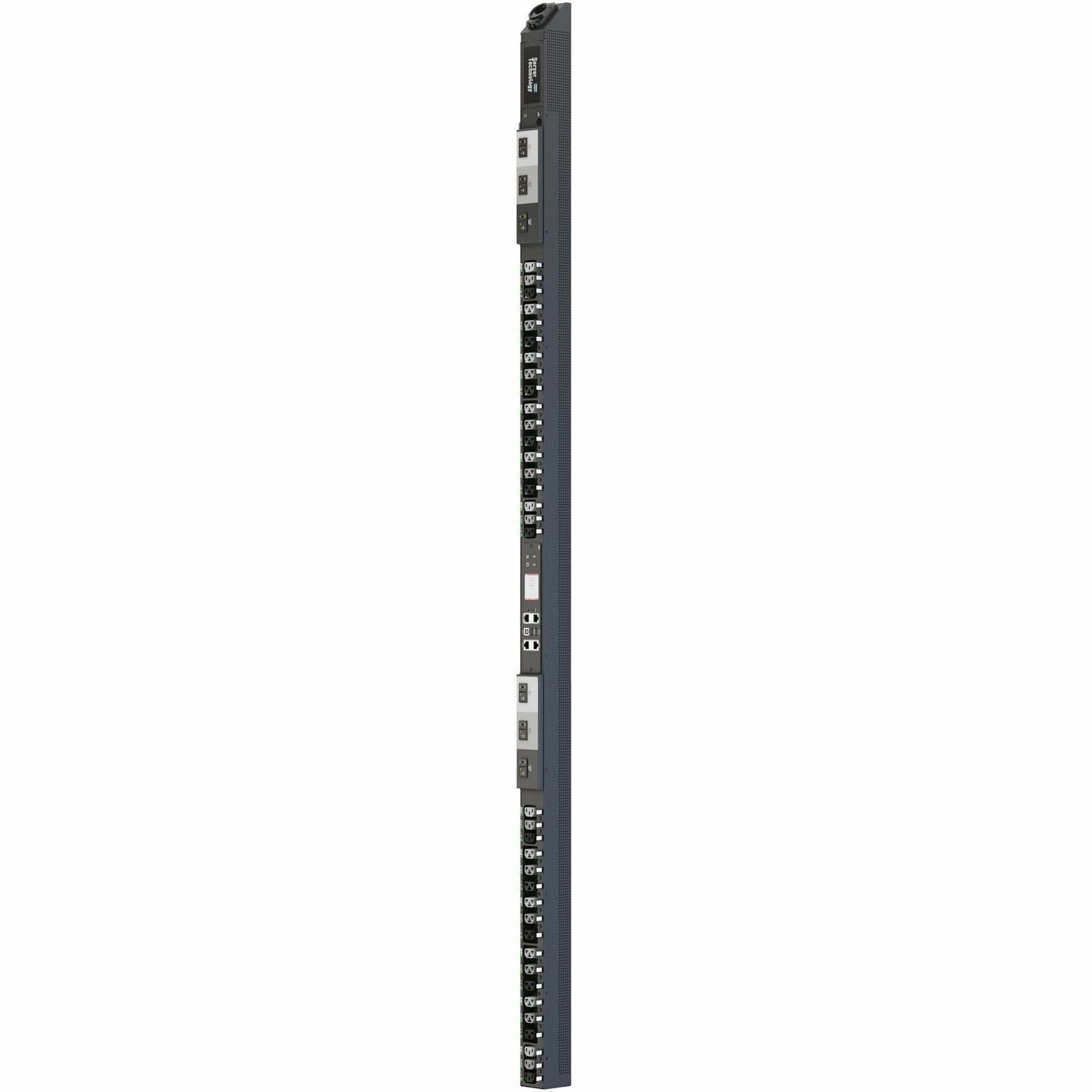

- Smart POPS
- Product Series
- PRO4X
- Product Type
- PDU
Key Features | HDOT Cx Outlets
Cx is the future-ready UL tested hybrid of a C13 and C19 outlet accommodating both C14 and C20 plugs.
45 Degree Angled Infeed
The angled infeed improves accessibility, provides infeed strain relief, and its bend radius is suitable with 60A rated cords.
Network Monitoring
Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
Multi-Unit Linking & Cascading
Daisy chain up to 16 PDUs from a primary PDU using a USB or Ethernet connection through a single IP address.
Multi-Color LCD
An easy-to-read LCD provides a local indication of power usage, alerts, and alarms.
Hot Swappable Controller
The Controller is the PDU's center of intelligence and houses computing, display, and connectivity ports.
Power Quality Measurements
Monitor and alert on the power being fed to the PDU for harmonics, voltage dips and swells, crest factor, and more at the outlet or load.
RGB LED Outlet Indicators
RGB LEDs identify an outlet's on/off state, if it's above/below a certain power threshold, or if it's in suspect of a power measurement irregularity.
Waveform Capture
Capture voltage and current waveforms automatically or upon demand.
RamLock Locking Outlets
A mechanical locking mechanism built to secure the broadest range of C14 and C20 plugs in place.
Environmental Monitoring
Support up to 12 daisy chained DX2-series SmartSensors, each with the ability to send SNMP-based alerts and email notifications.
Per-Inlet Power Sensing
PIPS® (Per Inlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, & Energy per inlet.
Per-Outlet Power Sensing
POPS® (Per Outlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, and Energy per outlet.
Branch Circuit Protection
This PDU meets the UL and IEC 62368-1 requirement for branch circuit protection through UL 489 rated magnetic-hydraulic circuit breakers or UL 248 fuses.
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Plug/Connector Type
- CS8365 3P+G 50A
- Receptacle Type
- IEC 60320 C13
- CX
- Receptacle Detail
- 12 x IEC 60320 C13
- 24 x CX
- Protection Type
- Branch Circuit
- Circuit Protection
- Fuse
- Locking Receptacles
- RamLock Locking Outlet
- Features
- Multi-color LCD
- Load Capacity (Watt)
- 14.40 kW
- Power Description
- Input Voltage
- 230 V AC
- Output Voltage
- 208 V AC
- Power Rating (Watt)
- 14.40 kW
- Input Current
- 50 A
- Circuit Breaker
- Yes
- Management
- Management
- HTTP/HTTPS
- TLSv1.2
- SSHv2
- Telnet
- SNMPv2c
- v3 (GET, SET, Traps)
- IPv4
- IPv6
- LDAPv3/LDAPS
- TACACS+
- RADIUS
- FTP/SFTP
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Mount Type
- Rack-mountable
- Height
- 70"
- Width
- 2.2"
- Depth
- 2.5"
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Minimum Operating Humidity
- 5%
- Maximum Operating Humidity
- 90%
- Minimum Storage Temperature
- -40°F (-40°C)
- Maximum Storage Temperature
- 185°F (85°C)
- Miscellaneous
- Certifications & Standards
Safety (Listed & Certified, cTUVus mark):
- UL 62368-1
- CSA C22.2 No. 62368-1
EMC:
- FCC Part 15 Subpart B Sections 15.107 & 15.109, Class A
- CAN ICES-003, Class A
