Features
- Receives HDMI signals with stereo audio and transmitts it to a remote display over UTP CAT5e/6 cabling up to 120 meters, requires HDMI Over IP Extender with IR - Decoder (RX) (part # CE-H23C11-S2) sold separately
-
Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional encoder (TX)units (part# CE-H23B11-S2) and decoder (RX)units (part# CE-H23C11-S2) sold separately
-
Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear imagesSupports IR pass back function to control the source device from RX location
- Supports computer control software to select and switch between source devices (Matrix only)
- Supports HDbit-T protocol with H.264 compression over IP
- HDMI output on the transmitter allows you to monitor the HDMI signal at the source location
- RS-232 pass-through connection to control RS-232 enabled devices at either direction
- General Information
- Manufacturer
- SIIG, Inc
- Manufacturer Website Address
- http://www.siig.com
- Brand Name
- SIIG
- Product Type
- Video Extender Transmitter
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Maximum Operating Distance
- 393.70 ft
- Video
- Graphics Modes
- Full HD
- Supported Video Modes
- 480p
- 720p
- 1080i
- 1080p
- Maximum Video Resolution
- 1920 x 1080
- Interfaces/Ports
- Network (RJ-45)
- Yes
- HDMI In
- Yes
- HDMI Out
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of HDMI Inputs
- 1
- Number of HDMI Outputs
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 6
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Transmitter Height
- 0.94"
- Transmitter Width
- 5.50"
- Transmitter Depth
- 3.27"
- Transmitter Weight (Approximate)
- 9.60 oz
- Miscellaneous
- Package Contents

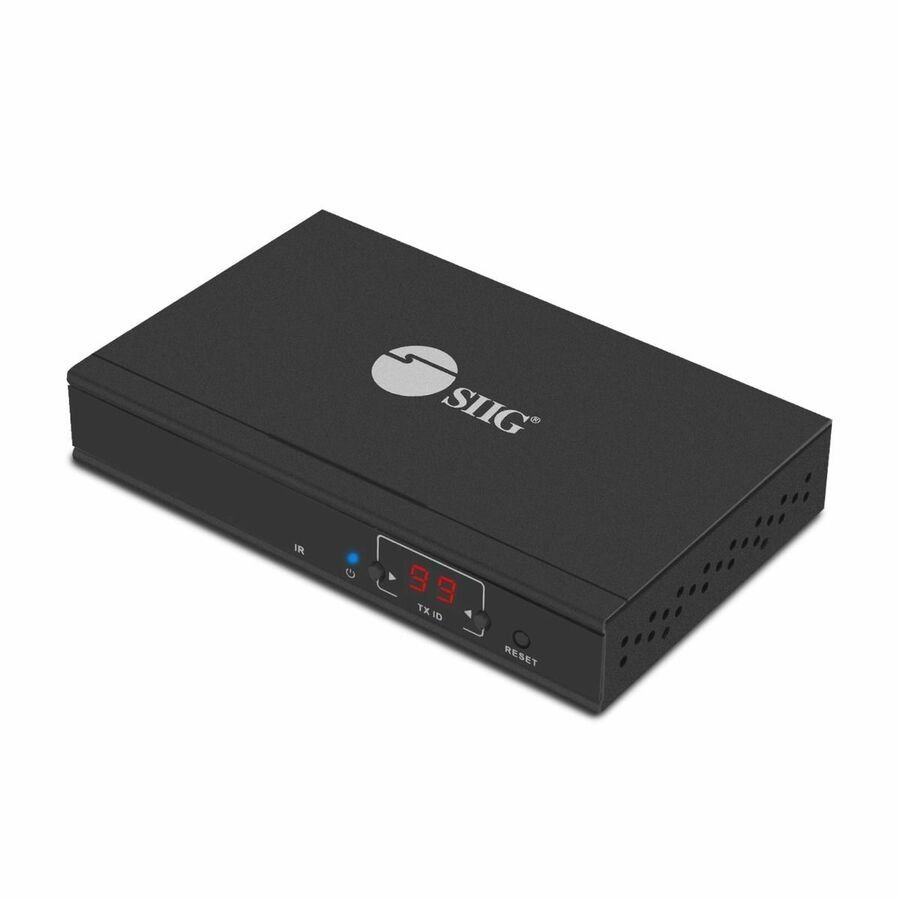

- HDMI Over IP Extender with IR - Transmitter
- Power Adapter
- IR Blaster Extension Cable
- 2 x Mounting Ears
- 4 x Screw Kit
- Remote Control
- 3 Pin Phoenix Connector
- User Reference Guide
- Application/Usage
- Office
- Educational Facilities
- Shopping Center
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
