- General Information
- Manufacturer
- Socket Mobile, Inc
- Manufacturer Website Address
- http://www.socketmobile.com
- Brand Name
- Socket Mobile
- Product Line
- XtremeScan
- Product Type
- Barcode Scanner
Built for extreme industrial environments, the XS963 equips your Apple iPhone with powerful long-range scanning capabilities. This handheld solution enables workers to scan 1D/2D barcodes at impressive distances (up to 46 feet) with speed and accuracy while offering Socket Mobile's highest level of industrial-grade durability.
Compatible with iPhone 16e, 16, and 15.

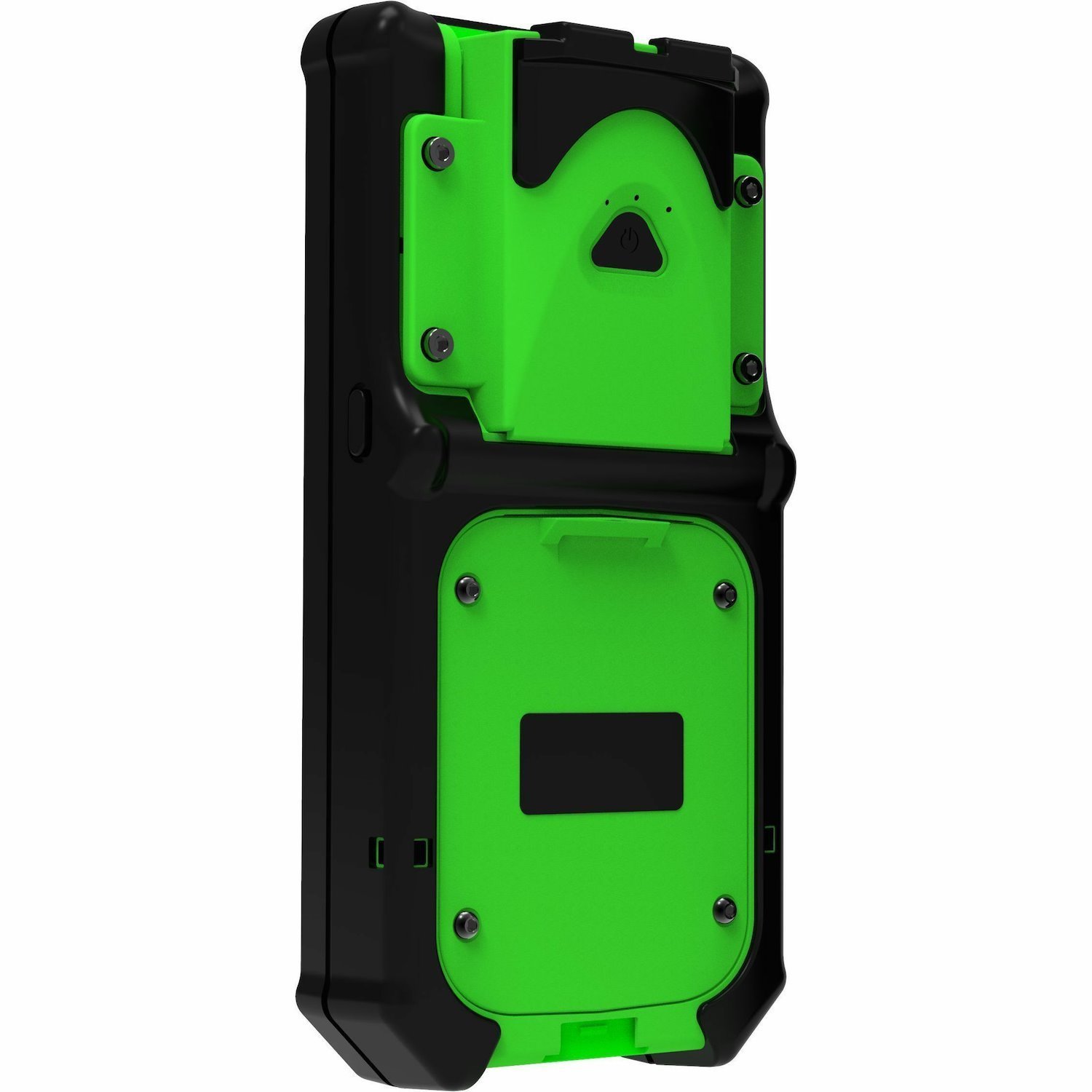

The XtremeScan XS963 combines a military-grade iPhone case and a high-performance, longrange barcode scanner into a compact, rugged scanning solution. Designed for warehousing, logistics, manufacturing, and field operations, the XS963 empowers mobile workers to capture barcodes from remarkable distances-minimizing repositioning, climbing, or interruption during scanning tasks.
Equipped with a long-range 1D/2D scan engine, the XS963 reads barcodes from as close as 2.2 inches to as far as 46 feet, depending on barcode type and size. Whether scanning shelf tags, pallet labels, or individual asset barcodes at a distance, the XS963 delivers fast, omnidirectional scanning with a safe, visible LED aimer for easy targeting.
Built for durability, the IP67-sealed XtremeScan housing protects the iPhone from dust, water, and drops, making it ready for the rigors of industrial use. With integrated wireless charging, the iPhone stays powered throughout the workday without needing to remove it from the case. The XS963 offers a sleek, compact alternative to pistol grip designs, giving professionals the flexibility of a rugged, handheld scanning device in a streamlined form factor.
- Technical Information
- Connectivity Technology
- Cable/Wireless
- Scanning Capability
- 1D
- 2D
- Barcode Symbology Supported
1D Symbologies:
- Bookland Ean, Codabar, Code 128, Code 39, Code 93, Ean Jan 13, Ean Jan 8, Gs1 128, Gs1 Databar Expanded, Gs1 Databar Limited, Gs1 Databar Omnidirectional, Interleaved 2 5, Isbt 128 Udi, Trioptic, Upc A, Upc E
2D Symbologies:
- Aztec, Composite, Data Matrix, Dotcode, Gs1 Data Matrix, Gs1 Qr, Han Xin, Maxicode, Micropdf417, Micro Qr, Pdf417, Qr
OCR Typeface:
- Ocr A, Ocr B
- Light Source
- LED
- Scan Pattern
- Omni-directional
- Scanner Range
- Long Range
- Scanning Distance
- 46 ft
- Features
- Notification LED
- Scan Button
- Beep
- Cable Type Included
- USB
- Field of View (Horizontal)
- 45°
- Field of View (Vertical)
- 34°
- Maximum Ambient Light
- 100000 lux
- Drop Specification
Standard:
- 10 ft. (3.1m) drop at room temperature per MIL-STD-810G
Freezer:
- 8 ft. (2.4m) drop to concrete across temperature per MIL-STD-810G
- 7 ft. (2.1m) drop to concrete across temperature per MIL-STD-810G.
- Minimum Print Contrast
- 25%
- Minimum Element Resolution (Code 39)
- 3 mil
- Maximum Element Resolution (Code 39)
- 20 mil
- Minimum Element Resolution (DataMatrix)
- 10 mil
- Minimum Element Resolution (PDF417)
- 5 mil
- Maximum Element Resolution (PDF417)
- 6.7 mil
- Image Sensor Resolution
- 1280 x 960
- Illumination Type
- LED
- Network & Communication
- Bluetooth
- Yes
- Interfaces/Ports
- Host Interface
- USB
- Battery Information
- Battery Chemistry
- Lithium Polymer (Li-Polymer)
- Battery Capacity
- 700 mAh
- Battery Weight
- 0.44 oz
- Maximum Battery Run Time
- 25 Hour
- Maximum Battery Recharge Time
- 8 Hour
- Environmental Conditions
- Operating Temperature
- 32°F (0°C) to 113°F (45°C)
- Storage Temperature
- -40°F (-40°C) to 158°F (70°C)
- Humidity (Non-condensing)
- 95%
- Physical Characteristics
- Form Factor
- Handheld
- Rugged
- Yes
- Durability
- Drop Resistant
- Water Resistant
- Dust Resistant
- Miscellaneous
- Compatibility
Apple iPhone 16e/16/15
- Ingress Protection (IP) Rating
- IP67
- Application/Usage
- Industrial
- Manufacturing
- Transportation
- Logistics
- Asset Tracking
- Component Tracking
- Warehouse
- Field Sales/Service
- Platform Supported
- iOS
- Smartphone
- Tablet
