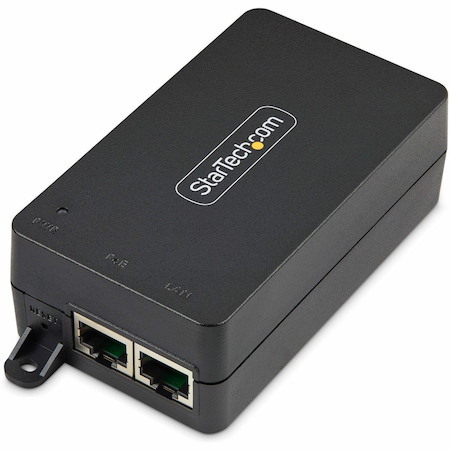

StarTech.com 1-Port 10Gbps Gigabit PoE++ Injector, 60W, 2.5/5/10G Ethernet/10/100/1000M, PoE++ (802.3af/at/bt), Wall Mountable, Unmanaged

  • Part: 3819219
  • Model: AF31XC-POE-INJECTOR
$94.99

Availability

In Stock

This 1-Port multi-speed PoE++ Injector serves as a Power Sourcing Equipment (PSE) device and enables Ethernet speeds of 10/100 Mbps/1000Mbps and 1/2.5/5/10Gbps. This TAA-compliant mid-span inline injector can transmit network data and power up to 328ft (100m) for single Powered Devices (PD).

Versatile PoE Injector

Single port PoE+ injector supports the IEEE 802.3af and 802.3at PSE standards, and delivers up to 60W output (54V, 1.11A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design of the PoE injector allows for either desktop or surface-mount use.

Streamlined Cable Management

All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (4x2.3x1.3-inch / 100x58.4x33.4mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.

  • General Information
    • Manufacturer
    • StarTech.com
    • Manufacturer Website Address
    • http://www.startech.com
    • Brand Name
    • StarTech.com
    • Packaged Quantity
    • 1
    • Product Type
    • PoE++ Injector
  • Warranty
    • Limited Warranty
    • 2 Year

  • Technical Information
    • Protection Type
    • Over Voltage
    • Over Current
    • Short Circuit
  • Power Description
    • Input Voltage
    • 120 V AC
    • 230 V AC
    • Maximum Output Voltage
    • 54 V DC
    • Maximum Input Current
    • 1.50 A
    • Minimum Output Current
    • 1.11 A
    • Maximum Output Current
    • 1.70 A
    • Maximum Output Power
    • 60 W
  • Interfaces/Ports
    • Input Ports
    • 1 x RJ-45
    • Output Ports
    • 1 x PoE++
  • Physical Characteristics
    • Color Family
    • Black
    • Product Color
    • Black
    • Form Factor
    • Desktop/Surface/Wall Mountable
    • Weight (Approximate)
    • 7 oz
  • Miscellaneous
    • Package Contents
      • 60W PoE++ Injector
      • 1 x 6ft (1.8m) Power Cord
      • 1 x Quick-Start Guide
    • Compatibility

    • Compatible Devices:

      • Access Points
      • IP Cameras
      • VoIP Phone Systems
      • IPTV
      • Access Controls
    • Certifications & Standards
      • UL
      • IEEE 802.3af
      • IEEE 802.3at
      • IEEE 802.3bt
      • IEEE 802.3an
      • IEEE 802.3bz
      • IEEE 802.3bz
      • IEEE 802.3ab
      • IEEE 802.3u
      • IEEE 802.3i
      • IEC 61000-4-2 Level-4 ESD protection
    • TAA Compliant
    • Yes
