- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Packaged Quantity
- 1 Kit
- Product Type
- Video Extender Transmitter/Receiver

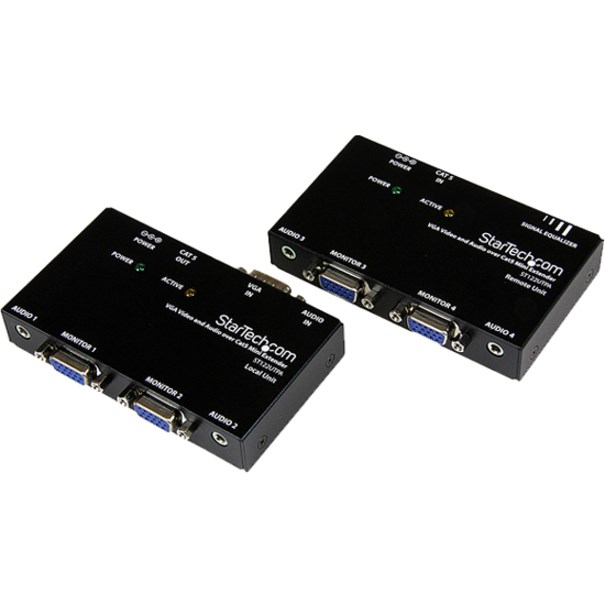

The ST122UTPA VGA Video Extender over Cat 5 with Audio allows up to 4 (2 local and 2 remote) monitors to be connected to a single PC. The video signal and corresponding audio are sent to the remote unit over standard 4 pair Category 5 or better (Cat 5e recommended) UTP cable, supporting extended video distances of up to 150m / 500ft.
The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that's perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPA receiver to install onto walls, desks or cabinets for a tidy setup.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
More from the Manufacturer
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Number of Output Devices Supported
- 4
- Maximum Operating Distance
- 150 ft
- Video
- Graphics Modes
- XGA
- Maximum Video Resolution
- 1440 x 900
- Interfaces/Ports
- Network (RJ-45)
- Yes
- VGA In
- Yes
- VGA Out
- Yes
- Number of Network (RJ-45) Ports
- 2
- Number of VGA Inputs
- 2
- Number of VGA Outputs
- 2
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 5
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Transmitter Height
- 0.80"
- Transmitter Width
- 3.30"
- Transmitter Depth
- 2.40"
- Form Factor
- Desktop
- Transmitter Weight (Approximate)
- 6.40 oz
- Miscellaneous
- Package Contents
- 1 x Local VGA Extender Unit
- 1 x Remote VGA Extender Unit
- 1 x Mounting Bracket for Receiver (w/ screws)
- 2 x Sets Rubber Feet
- 2 x Power Adapter
- 1 x Instruction Manual
- Additional Information
- Allows users to make use of existing Ethernet infrastructure to extend VGA displays and audio
- Extends the connection distance of VGA displays by up to 500 feet (150 meters) offering flexibility in the placement of your equipment
- Includes mounting brackets for versatile mounting options such as a wall, desk or cabinet, for a clean and manageable solution
- Country of Origin
- Taiwan
- TAA Compliant
- Yes
- Environmentally Friendly
- Yes
