- General Information
- Manufacturer
- Tenda Technology Inc
- Manufacturer Website Address
- http://www.tendaus.com
- Brand Name
- Tenda
- Product Type
- Ethernet Switch
Dedicated for SMB Networking & Surveillance

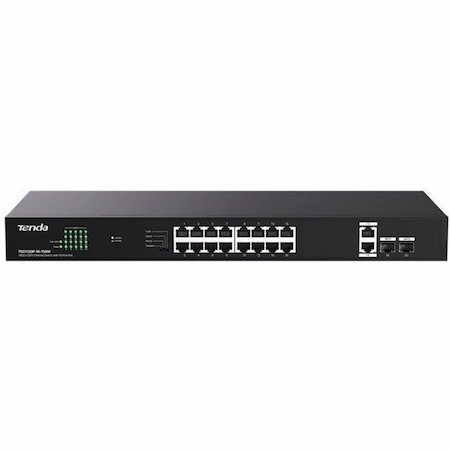

18GE+2SFP Ethernet Switch With 16-Port PoE |
High speed network transmission, Experience extreme smoothness
Full gigabit ports , 40 Gbps non-blocking line speed forwarding, improve the forwarding rate of large files, ensure smooth and stable transmission of large files and HD videos.
- Full gigabit ports
- 40 Gbps Switching capacity
GE and SFP Uplink Ports, Easier HD Monitoring
With two gigabit uplink port and two gigabit uplink optical fiber port, easily complete low-cost remote networking.
Smart PoE Power Supply, Stable Transmission
Providing 16 100/1000M PoE ports in accordance with the IEEE802.3AF / AT standard, the maximum PoE output of the whole machine is 150W, and of a single port is 30W. It can provide stable power supply and data transmission for HD PoE IP cameras, APs, etc.
4 Modes for More Scenarios, One-key To Change Smart and Easy
The switch supports 4 working modes of Standard, VLAN, Priority and Extend, realizing flexible network deployment in complex cases with lowered cost.
- Standard Mode
- Priority Mode
- Extend Mode
- VLAN Mode
Standard Mode
All ports can communicate with each other. It can be used as a common non-management PoE switch.
Priority Mode
Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.
Extend Mode
The maximum transmission distance of the 9-16 ports of the switch can reach 250 meters, and all ports can communicate with each other.
VLAN Mode
Ports 1 to 16 cannot communicate with each other, but can communicate with ports 17, 18, SFP1 (19), and SFP2 (20), which can be used to isolate broadcast storms and DHCP conflicts.
Standard 19-inch metal body design
Quick and easy Internet settings, simple enough for you to set up office networking,19-inch body design, and support desktop, wall and rack mounting.
6KV Excellent Lightning Protection
The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms.
- Technical Information
- Features
- Plug and Play
- Interfaces/Ports
- Total Number of Network Ports
- 18
- Uplink Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 16 * 10/100/1000Base-T Gigabit Ethernet PoE RJ-45 Network Port
- 2 x 10/100/1000 Base-T Gigabit Ethernet RJ-45 Port
- 2 x 100/1000Base-X SFP Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 100Base-X
- 1000Base-X
- Maximum Data Transfer Rate
- 125 MB/s
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 2
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.3af
- IEEE 802.3at
- Management & Protocols
- Manageable
- No
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 230 W
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- Power Consumption
- 250 W
- Physical Characteristics
- Product Material
- Metal
- Compatible Rack Unit
- 1U
- Form Factor
- Desktop
- Wall Mountable
- Rack-mountable
- Height
- 1.7"
- Width
- 7"
- Length
- 17.3"
- Miscellaneous
- Application/Usage
- Business
- Network
- Surveillance
- Wireless Access Point
- IP Camera
- Office
- Hotel
- School
- Certifications & Standards
- FCC
- CE
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
