- General Information
- Manufacturer
- SIIG, Inc
- Manufacturer Website Address
- http://www.siig.com
- Brand Name
- SIIG
- Product Type

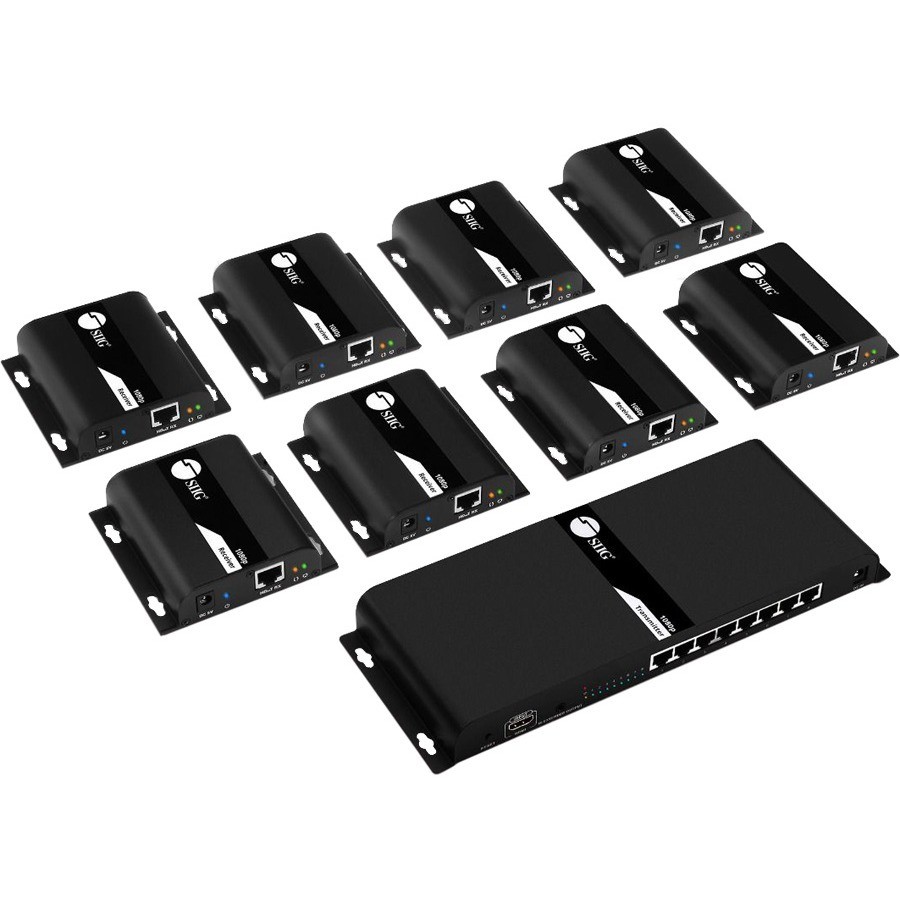

- Video Extender Transmitter/Receiver
Extends 1080p HDMI signals up to 120m (394ft) over economical Cat6 cabling to up to 8 displays
- Extends HDMI signals up to 120m (394ft) over economical Cat6 cabling to up to 8 displays
- Features Cascade connection extends HDMI signal through unmanaged Gigabit network routers or switches, With HDBitT® transport protocol, you can not only extend but split HDMI signals to additional displays
- Note: Additional receivers, HDMI Extender over CAT6 with IR - Receiver, part # CE-H23U11-S1, sold separately
- Delivers crystal clear Full HD content up to 1080p@60Hz resolution
- IR remote control through Cat6 cable allows you to control the HDMI source device at the remote display location
- High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation
- Plug-n-Play installation, no software installation required
- Warranty
- Limited Warranty
- 6 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Number of Output Devices Supported
- 8
- Maximum Operating Distance
- 393.70 ft
- Video
- Graphics Modes
- Full HD
- Maximum Video Resolution
- 1920 x 1080
- Interfaces/Ports
- Network (RJ-45)
- Yes
- HDMI In
- Yes
- HDMI Out
- Yes
- Number of Network (RJ-45) Ports
- 16
- Number of HDMI Inputs
- 1
- Number of HDMI Outputs
- 8
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 7
- Physical Characteristics
- Transmitter Height
- 1.18"
- Transmitter Width
- 4.37"
- Transmitter Depth
- 11.81"
- Receiver Height
- 0.93"
- Receiver Width
- 3.70"
- Receiver Depth
- 3.81"
- Form Factor
- Wall Mountable
- Transmitter Weight (Approximate)
- 1.83 lb
- Receiver Weight (Approximate)
- 5.28 oz
- Miscellaneous
- Package Contents
- 1 x Transmitter
- 8 x Receivers
- 9 x Power Adapter
- 1 x IR Blaster Extension Cable
- 8 x IR Receiver Extension Cable
- Screw kit
- Quick Start Guide
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
